Description

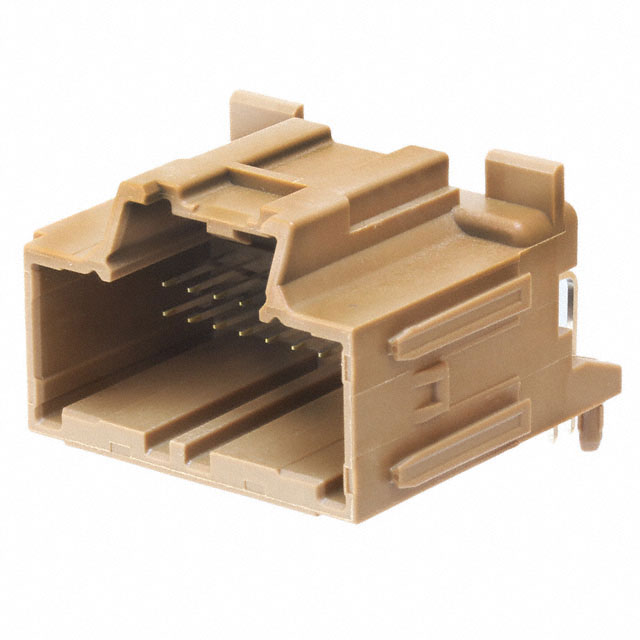

Connector Header Through Hole, Right Angle 20 position 0.100" (2.54mm)
Specifications
- Mfr
- Molex
- Style
- Board to Cable/Wire
- Series
- Stac64 34691
- Features
- Board Guide
- Packaging
- Tray
- Shrouding
- Shrouded - 4 Wall
- Part Status
- Active
- Termination
- Solder
- Applications
- Automotive
- Contact Type
- Male Pin
- Contact Shape
- Square
- Mounting Type
- Through Hole, Right Angle
- Connector Type
- Header
Pitch - Mating0.100" (2.54mm) Contact MaterialCartridge Brass Insulation Height0.868" (22.05mm) Base Product Number034691 Insulation MaterialSyndiotactic Polystyrene (SPS), Glass Filled Row Spacing - Mating0.100" (2.54mm) Contact Length - Post0.119" (3.02mm) Operating Temperature-40°C ~ 105°C Contact Finish - MatingTin Number of Positions LoadedAll Material Flammability Rating- Contact Finish Thickness - Post- Contact Finish Thickness - Mating- Pricing tiers
| Packaging | Qty | Unit price |
|---|
| Tray | 1 | ¥30.76000 |
| Tray | 10 | ¥26.15000 |
| Tray | 100 | ¥22.22730 |
| Tray | 560 | ¥19.68288 |
| Tray | 1,120 | ¥18.74401 |
