0348268164

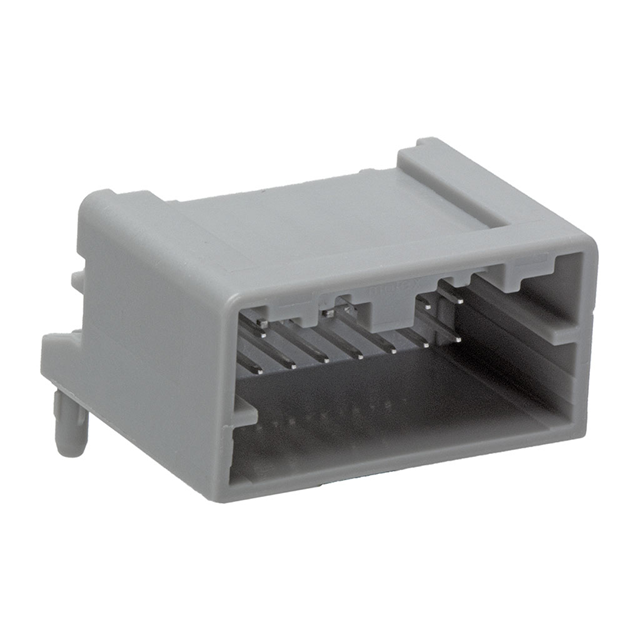

MINI50 RA DR HDR-16CKT PO
Manufacturer: MolexIC code: 900-0348268164TR-ND - Tape & Reel (TR) || 900-0348268164CT-ND - Cut Tape (CT) Request this MPN now. Sourcing more than one part? Upload your BOM and we can consolidate component sourcing into one quotation.
Description
Connector Header Through Hole, Right Angle 16 position 0.079" (2.00mm)
Specifications
- Mfr
- Molex
- Style
- Board to Cable/Wire
- Series
- Mini50 34826
- Features
- Board Guide
- Packaging
- Tape & Reel (TR) || Cut Tape (CT)
- Shrouding
- Shrouded - 4 Wall
- Part Status
- Active
- Termination
- Solder
- Applications
- Automotive
- Contact Type
- Male Pin
- Contact Shape
- Square
- Mounting Type
- Through Hole, Right Angle
- Connector Type
- Header
Fastening TypeLatch Holder Pitch - Mating0.079" (2.00mm) Insulation Height0.460" (11.68mm) Base Product Number034826 Insulation MaterialSyndiotactic Polystyrene (SPS), Glass Filled Row Spacing - Mating0.079" (2.00mm) Contact Length - Post0.130" (3.30mm) Current Rating (Amps)4A per Contact Operating Temperature-40°C ~ 100°C Contact Finish - MatingTin Contact Length - Mating0.219" (5.56mm) Number of Positions LoadedAll Material Flammability RatingUL94 HB Contact Finish Thickness - Post- Contact Finish Thickness - Mating- Pricing tiers
| Packaging | Qty | Unit price |
|---|
| Cut Tape (CT) | 1 | ¥17.70000 |
| Cut Tape (CT) | 10 | ¥15.02700 |
| Tape & Reel (TR) | 170 | ¥11.69329 |
| Tape & Reel (TR) | 340 | ¥11.13506 |
| Tape & Reel (TR) | 510 | ¥10.82104 |
| Tape & Reel (TR) | 850 | ¥10.43789 |
| Tape & Reel (TR) | 1,190 | ¥10.19314 |
| Tape & Reel (TR) | 1,700 | ¥9.93989 |
| Tape & Reel (TR) | 4,250 | ¥9.31810 |
| Tape & Reel (TR) | 8,500 | ¥8.87387 |
