Description

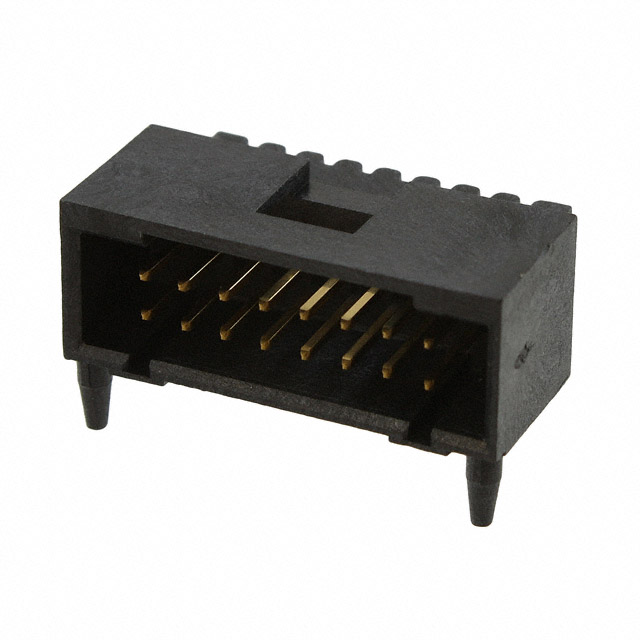

Connector Header Through Hole, Right Angle 16 position 0.100" (2.54mm)
Specifications
- Mfr
- Molex
- Style
- Board to Board
- Series
- C-Grid 74164
- Features
- Board Guide
- Packaging
- Tube
- Shrouding
- Shrouded - 4 Wall
- Part Status
- Active
- Termination
- Solder
- Applications
- Automotive, General Purpose, Lighting, Medical, Telecommunications
- Contact Type
- Male Pin
- Contact Shape
- Square
- Mounting Type
- Through Hole, Right Angle
- Connector Type
- Receptacle
Fastening TypeLatch Holder Pitch - Mating0.100" (2.54mm) Contact MaterialCopper Alloy Insulation Height0.420" (10.67mm) Base Product Number074164 Insulation MaterialLiquid Crystal Polymer (LCP), Glass Filled Row Spacing - Mating0.100" (2.54mm) Contact Length - Post0.130" (3.30mm) Contact Finish - MatingGold Contact Length - Mating0.315" (8.00mm) Number of Positions LoadedAll Material Flammability RatingUL94 V-0 Contact Finish Thickness - Post74.8µin (1.90µm) Contact Finish Thickness - Mating15.0µin (0.38µm) Pricing tiers
| Packaging | Qty | Unit price |
|---|
| Tube | 1 | ¥24.15000 |
| Tube | 19 | ¥19.61737 |
| Tube | 114 | ¥17.28649 |
| Tube | 513 | ¥15.54581 |
| Tube | 1,007 | ¥14.82357 |
| Tube | 5,016 | ¥13.23726 |
