0780470443

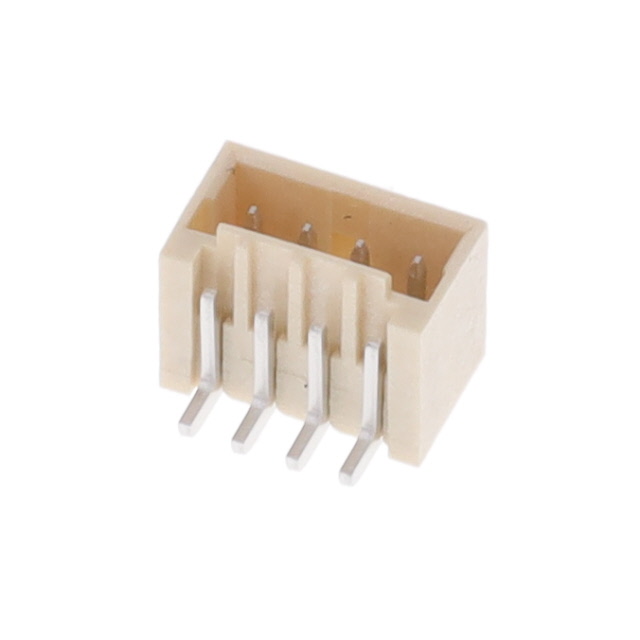

CONN HEADER SMD 4POS 1.5MM
Manufacturer: MolexIC code: WM20467TR-ND - Tape & Reel (TR) || WM20467CT-ND - Cut Tape (CT) || WM20467DKR-ND - Digi-Reel® Request this MPN now. Sourcing more than one part? Upload your BOM and we can consolidate component sourcing into one quotation.
Description
Connector Header Surface Mount 4 position 0.059" (1.50mm)
Specifications
- Mfr
- Molex
- Style
- Board to Cable/Wire
- Series
- Pico-SPOX 78047
- Features
- -
- Packaging
- Tape & Reel (TR) || Cut Tape (CT) || Digi-Reel®
- Shrouding
- Shrouded - 4 Wall
- Part Status
- Obsolete
- Termination
- Solder
- Applications
- -
- Contact Type
- Male Pin
- Contact Shape
- Square
- Mounting Type
- Surface Mount
- Connector Type
- Header
Pitch - Mating0.059" (1.50mm) Contact MaterialBrass Alloy Insulation Height0.226" (5.74mm) Base Product Number078047 Insulation MaterialLiquid Crystal Polymer (LCP), Glass Filled Current Rating (Amps)2.5A Operating Temperature-55°C ~ 105°C Contact Finish - MatingTin Contact Length - Mating0.106" (2.70mm) Number of Positions LoadedAll Material Flammability RatingUL94 V-0 Contact Finish Thickness - Post100.0µin (2.54µm) Contact Finish Thickness - Mating100.0µin (2.54µm) Pricing tiers
| Packaging | Qty | Unit price |
|---|
| Cut Tape (CT) & Digi-Reel® | 1 | ¥4.38000 |
| Cut Tape (CT) & Digi-Reel® | 10 | ¥3.73800 |
| Cut Tape (CT) & Digi-Reel® | 100 | ¥3.17900 |
