Description

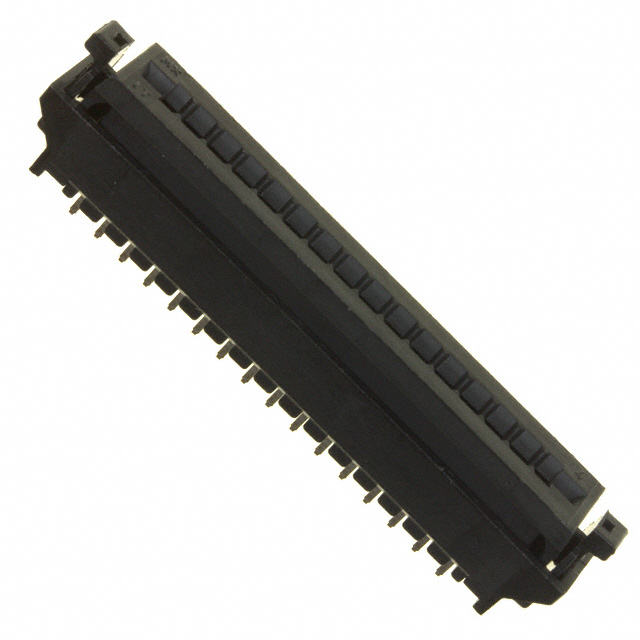

16 Position FFC Connector Contacts, Vertical - 2 Sided 0.100" (2.54mm) Through Hole
Specifications
- Pitch
- 0.100" (2.54mm)
- Series
- 90500
- Features
- Zero Insertion Force (ZIF)
- Packaging
- Tube
- Part Status
- Obsolete
- Termination
- Solder
- Manufacturer
- Molex
- Housing Color
- Black
- Mating Cycles
- 50
- Mounting Type
- Through Hole
- Actuator Color
- Black
- Cable End Type
- Notched
- Contact Finish
- Tin
Locking FeatureSlide Lock Contact MaterialPhosphor Bronze Housing MaterialPolybutylene Terephthalate (PBT), Glass Filled Actuator MaterialPolybutylene Terephthalate (PBT), Glass Filled Height Above Board0.346" (8.80mm) Base Product Number090500 Current Rating (Amps)2.5A Operating Temperature-40°C ~ 85°C Connector/Contact TypeContacts, Vertical - 2 Sided Contact Finish Thickness- Material Flammability RatingUL94 V-0
