Description

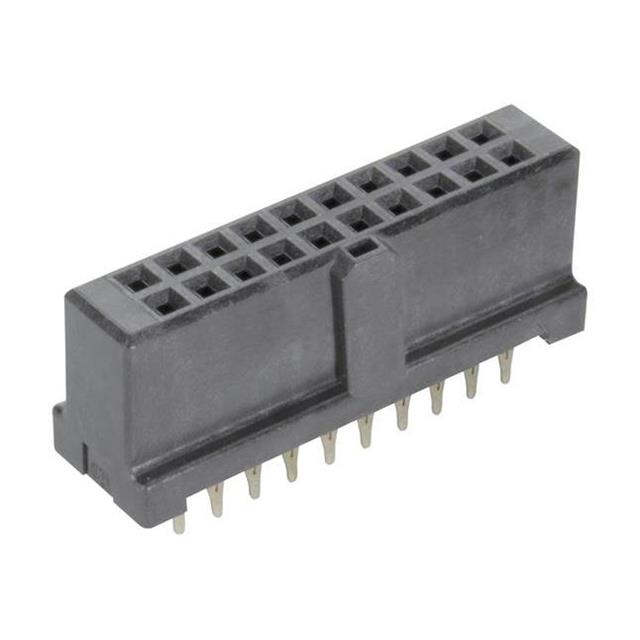

20 Position Receptacle Connector 0.100" (2.54mm) Through Hole Gold
Specifications
- Mfr
- HARTING
- Style
- Board to Board
- Series
- SEK
- Features
- Polarizing Key
- Packaging
- Bulk
- Part Status
- Active
- Termination
- Press-Fit, Solder
- Applications
- -
- Contact Type
- Female Socket
- Contact Shape
- Square
- Mounting Type
- Through Hole
- Connector Type
- Receptacle
- Fastening Type
- Push-Pull
- Number of Rows
- 2
- Pitch - Mating
- 0.100" (2.54mm)
- Voltage Rating
- -
- Contact Material
- Copper Alloy
- Insulation Color
- Black
- Insulation Height
- -
- Ingress Protection
- -
- Insulation Material
- Liquid Crystal Polymer (LCP)
- Number of Positions
- 20
- Row Spacing - Mating
- 0.100" (2.54mm)
- Contact Finish - Post
- Nickel
- Contact Length - Post
- 0.177" (4.50mm)
- Current Rating (Amps)
- 1A
- Operating Temperature
- -55°C ~ 125°C
- Mated Stacking Heights
- -
- Contact Finish - Mating
- Gold
- Number of Positions Loaded
- All
- Material Flammability Rating
- UL94 V-0
- Contact Finish Thickness - Post
- -
- Contact Finish Thickness - Mating
- -
Pricing tiers
| Packaging | Qty | Unit price |
|---|---|---|
| Bulk | 100 | ¥21.48460 |
