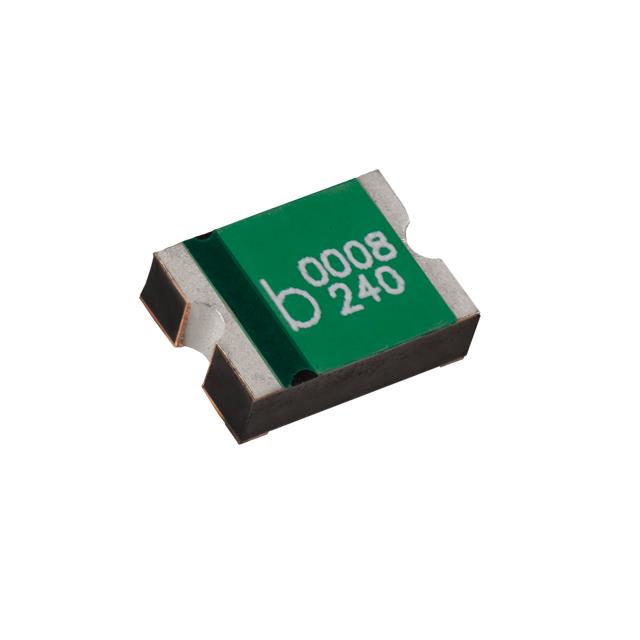

0ZAF0005FF28
LINE VOLTAGE RATED SURFACE MOUNT
Manufacturer: Bel Fuse Inc.IC code: 5923-0ZAF0005FF28TR-ND - Tape & Reel (TR) || 5923-0ZAF0005FF28CT-ND - Cut Tape (CT) || 5923-0ZAF0005FF28DKR-ND - Digi-Reel® Request this MPN now. Sourcing more than one part? Upload your BOM and we can consolidate component sourcing into one quotation.
Description
Polymeric PTC Resettable Fuse 240V (250V Int) 50 mA Ih Surface Mount 2920 (7351 Metric), Concave
Specifications
- Type
- Polymeric
- Grade
- Automotive
- Series
- -
- Ratings
- -
- Packaging
- Tape & Reel (TR) || Cut Tape (CT) || Digi-Reel®
- Part Status
- Active
- Lead Spacing
- -
- Manufacturer
- Bel Fuse Inc.
- Time to Trip
- 15 s
- Current - Max
- 1 A
- Mounting Type
- Surface Mount
- Qualification
- AEC-Q200
- Voltage - Max
- 240V (250V Int)
Package / Case2920 (7351 Metric), Concave Approval AgencyCE, cURus, TUV, UKCA Thickness (Max)0.102" (2.60mm) Size / Dimension0.290" L x 0.202" W (7.36mm x 5.12mm) Current - Trip (It)120 mA Operating Temperature-40°C ~ 85°C Resistance - 25°C (Typ)55 Ohms Current - Hold (Ih) (Max)50 mA Resistance - Initial (Ri) (Min)10 Ohms Resistance - Post Trip (R1) (Max)70 Ohms Pricing tiers
| Packaging | Qty | Unit price |
|---|
| Cut Tape (CT) & Digi-Reel® | 1 | ¥5.95000 |
| Cut Tape (CT) & Digi-Reel® | 5 | ¥4.92800 |
| Cut Tape (CT) & Digi-Reel® | 10 | ¥4.55700 |
| Cut Tape (CT) & Digi-Reel® | 50 | ¥3.77780 |
| Cut Tape (CT) & Digi-Reel® | 100 | ¥3.48580 |
| Cut Tape (CT) & Digi-Reel® | 250 | ¥3.13368 |
| Tape & Reel (TR) | 800 | ¥2.73561 |
| Tape & Reel (TR) | 1,600 | ¥2.52157 |
| Tape & Reel (TR) | 2,400 | ¥2.40374 |
| Tape & Reel (TR) | 4,000 | ¥2.26244 |
| Tape & Reel (TR) | 5,600 | ¥2.17354 |
| Tape & Reel (TR) | 8,000 | ¥2.08278 |
| Tape & Reel (TR) | 20,000 | ¥1.98997 |
