0ZTF0110FF2C

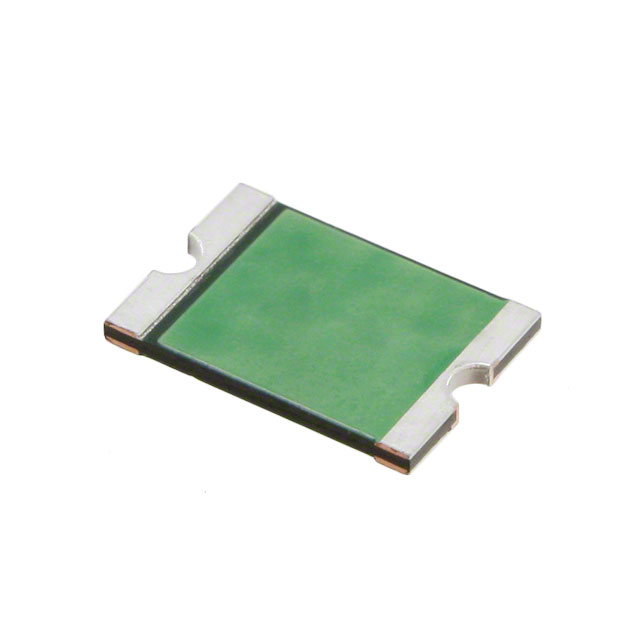

PTC RESET FUSE 16V 1.1A 2920
Manufacturer: Bel Fuse Inc.IC code: 5923-0ZTF0110FF2CTR-ND - Tape & Reel (TR) || 5923-0ZTF0110FF2CCT-ND - Cut Tape (CT) || 5923-0ZTF0110FF2CDKR-ND - Digi-Reel® Request this MPN now. Sourcing more than one part? Upload your BOM and we can consolidate component sourcing into one quotation.
Description
Polymeric PTC Resettable Fuse 16V 1.1 A Ih Surface Mount 2920 (7351 Metric), Concave
Specifications
- Type
- Polymeric
- Grade
- Automotive
- Series
- 0ZTF
- Ratings
- -
- Packaging
- Tape & Reel (TR) || Cut Tape (CT) || Digi-Reel®
- Part Status
- Active
- Lead Spacing
- -
- Manufacturer
- Bel Fuse Inc.
- Time to Trip
- 2 s
- Current - Max
- 50 A
- Mounting Type
- Surface Mount
- Qualification
- AEC-Q200
- Voltage - Max
- 16V
Approval AgencycURus, TUV, UL Thickness (Max)0.067" (1.70mm) Size / Dimension0.290" L x 0.202" W (7.36mm x 5.12mm) Operating Temperature-40°C ~ 125°C Current - Hold (Ih) (Max)1.1 A Resistance - Initial (Ri) (Min)90 mOhms Resistance - Post Trip (R1) (Max)410 mOhms Pricing tiers
| Packaging | Qty | Unit price |
|---|
| Cut Tape (CT) & Digi-Reel® | 1 | ¥9.76000 |
| Cut Tape (CT) & Digi-Reel® | 5 | ¥8.05400 |
| Cut Tape (CT) & Digi-Reel® | 10 | ¥7.43500 |
| Cut Tape (CT) & Digi-Reel® | 50 | ¥6.16940 |
| Cut Tape (CT) & Digi-Reel® | 100 | ¥5.69140 |
| Cut Tape (CT) & Digi-Reel® | 250 | ¥5.11580 |
| Cut Tape (CT) & Digi-Reel® | 500 | ¥4.71754 |
| Cut Tape (CT) & Digi-Reel® | 1,000 | ¥4.34861 |
| Tape & Reel (TR) | 2,000 | ¥4.00661 |
| Tape & Reel (TR) | 4,000 | ¥3.68941 |
| Tape & Reel (TR) | 6,000 | ¥3.51450 |
| Tape & Reel (TR) | 10,000 | ¥3.41137 |
