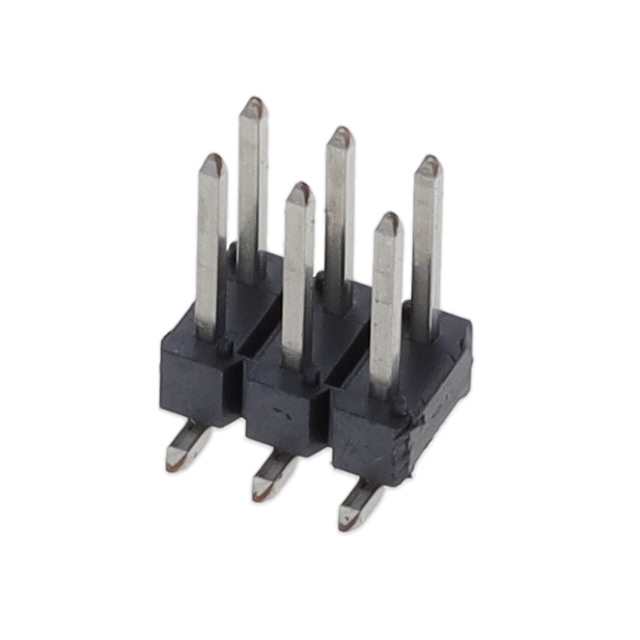

10125394-T0803ALF
BS DR VT SMT HDR 2X3 TR
Manufacturer: Amphenol ICC (FCI)IC code: 609-10125394-T0803ALFTR-ND - Tape & Reel (TR) || 609-10125394-T0803ALFCT-ND - Cut Tape (CT) || 609-10125394-T0803ALFDKR-ND - Digi-Reel® Request this MPN now. Sourcing more than one part? Upload your BOM and we can consolidate component sourcing into one quotation.
Description
Connector Header Surface Mount 6 position 0.100" (2.54mm)
Specifications
- Mfr
- Amphenol ICC (FCI)
- Style
- Board to Board
- Series
- BERGSTIK®
- Features
- Pick and Place
- Packaging
- Tape & Reel (TR) || Cut Tape (CT) || Digi-Reel®
- Shrouding
- Unshrouded
- Part Status
- Active
- Termination
- Solder
- Applications
- -
- Contact Type
- Male Pin
- Contact Shape
- Square
- Mounting Type
- Surface Mount
- Connector Type
- Header
Pitch - Mating0.100" (2.54mm) Contact MaterialCopper Alloy Insulation Height0.100" (2.54mm) Base Product Number10125394 Insulation MaterialThermoplastic Row Spacing - Mating0.100" (2.54mm) Current Rating (Amps)3A per Contact Operating Temperature-65°C ~ 125°C Contact Finish - MatingTin Contact Length - Mating0.230" (5.84mm) Number of Positions LoadedAll Material Flammability RatingUL94 V-0 Contact Finish Thickness - Post100.0µin (2.54µm) Contact Finish Thickness - Mating100.0µin (2.54µm) Pricing tiers
| Packaging | Qty | Unit price |
|---|
| Cut Tape (CT) & Digi-Reel® | 1 | ¥4.22000 |
| Cut Tape (CT) & Digi-Reel® | 10 | ¥3.58100 |
| Tape & Reel (TR) | 555 | ¥2.69631 |
| Tape & Reel (TR) | 1,110 | ¥2.56750 |
| Tape & Reel (TR) | 1,665 | ¥2.49505 |
| Tape & Reel (TR) | 2,775 | ¥2.40667 |
| Tape & Reel (TR) | 3,885 | ¥2.35023 |
| Tape & Reel (TR) | 5,550 | ¥2.29182 |
| Tape & Reel (TR) | 13,875 | ¥2.14840 |
| Tape & Reel (TR) | 27,750 | ¥2.04595 |
