10152265-1161HF

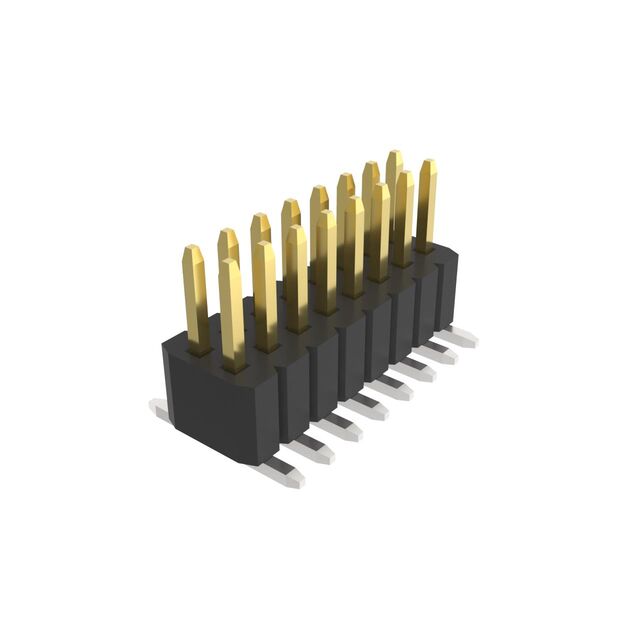

MINITEK127 1.27MM, VERTICAL HEAD
Manufacturer: Amphenol ICC (FCI)IC code: 609-10152265-1161HFTR-ND - Tape & Reel (TR) || 609-10152265-1161HFCT-ND - Cut Tape (CT) || 609-10152265-1161HFDKR-ND - Digi-Reel® Request this MPN now. Sourcing more than one part? Upload your BOM and we can consolidate component sourcing into one quotation.
Description
Connector Header Surface Mount 16 position 0.050" (1.27mm)
Specifications
- Mfr
- Amphenol ICC (FCI)
- Style
- Board to Board
- Series
- Minitek127® 10152265
- Features
- Pick and Place
- Packaging
- Tape & Reel (TR) || Cut Tape (CT) || Digi-Reel®
- Shrouding
- Unshrouded
- Part Status
- Active
- Termination
- Solder
- Applications
- -
- Contact Type
- Male Pin
- Contact Shape
- Square
- Mounting Type
- Surface Mount
- Connector Type
- Header
Pitch - Mating0.050" (1.27mm) Insulation Height0.098" (2.50mm) Insulation MaterialPolyamide (PA9T), Nylon 9T Row Spacing - Mating0.050" (1.27mm) Current Rating (Amps)1A per Contact Operating Temperature-40°C ~ 105°C Contact Finish - MatingGold Contact Length - Mating0.120" (3.05mm) Number of Positions LoadedAll Material Flammability RatingUL94 V-0 Contact Finish Thickness - Post50.0µin (1.27µm) Contact Finish Thickness - MatingFlash Pricing tiers
| Packaging | Qty | Unit price |
|---|
| Cut Tape (CT) & Digi-Reel® | 1 | ¥7.44000 |
| Cut Tape (CT) & Digi-Reel® | 10 | ¥6.32700 |
| Cut Tape (CT) & Digi-Reel® | 100 | ¥5.37470 |
| Cut Tape (CT) & Digi-Reel® | 500 | ¥4.79710 |
| Tape & Reel (TR) | 1,000 | ¥4.56801 |
| Tape & Reel (TR) | 2,000 | ¥4.34989 |
| Tape & Reel (TR) | 3,000 | ¥4.22723 |
| Tape & Reel (TR) | 5,000 | ¥4.07767 |
| Tape & Reel (TR) | 7,000 | ¥3.98208 |
| Tape & Reel (TR) | 10,000 | ¥3.88317 |
