Description

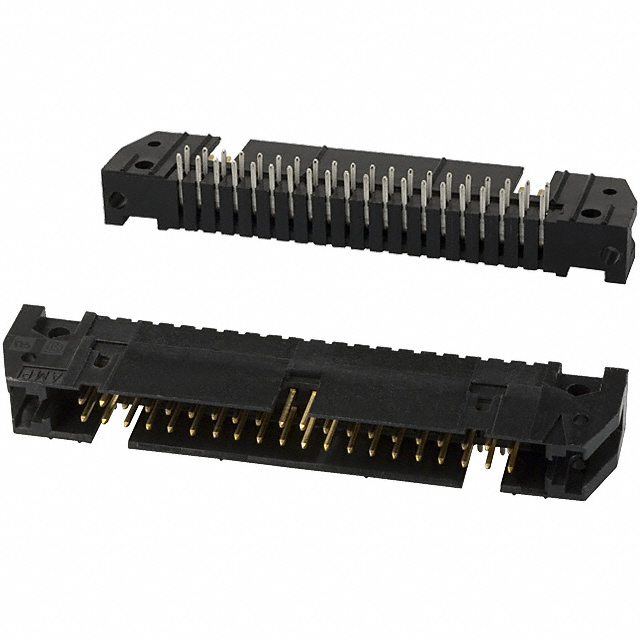

Connector Header Through Hole, Right Angle 40 position 0.100" (2.54mm)
Specifications
- Mfr
- TE Connectivity AMP Connectors
- Style
- Board to Cable/Wire
- Series
- AMP-Latch
- Features
- Keying Slot, Mounting Flange
- Packaging
- Bulk
- Shrouding
- Shrouded - 4 Wall
- Part Status
- Active
- Termination
- Solder
- Applications
- -
- Contact Type
- Male Pin
- Contact Shape
- Square
- Mounting Type
- Through Hole, Right Angle
- Connector Type
- Header
Pitch - Mating0.100" (2.54mm) Insulation Height0.315" (8.00mm) Base Product Number102160 Row Spacing - Mating0.100" (2.54mm) Contact Finish - PostTin-Lead Contact Length - Post0.110" (2.79mm) Current Rating (Amps)1A per Contact Operating Temperature-65°C ~ 105°C Contact Finish - MatingGold or Gold-Palladium Contact Length - Mating0.240" (6.10mm) Number of Positions LoadedAll Material Flammability RatingUL94 V-0 Contact Finish Thickness - Post100.0µin (2.54µm) Contact Finish Thickness - Mating30.0µin (0.76µm) Pricing tiers
| Packaging | Qty | Unit price |
|---|
| Bulk | 320 | ¥41.07528 |
