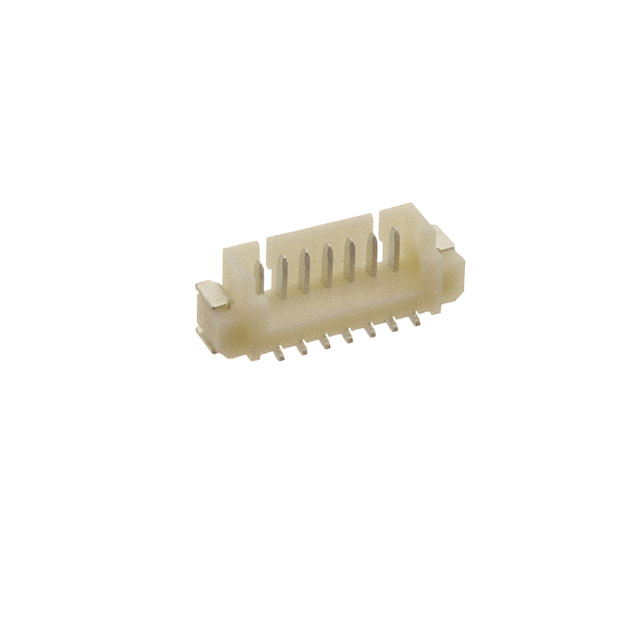

125SH-B-07-TR-SMT-T/R
CONN HEADER SMD R/A 7POS 1.25MM
Manufacturer: Adam TechIC code: 2057-125SH-B-07-TR-SMT-T/RTR-ND - Tape & Reel (TR) || 2057-125SH-B-07-TR-SMT-T/RCT-ND - Cut Tape (CT) || 2057-125SH-B-07-TR-SMT-T/RDKR-ND - Digi-Reel® Request this MPN now. Sourcing more than one part? Upload your BOM and we can consolidate component sourcing into one quotation.
Description
Connector Header Surface Mount, Right Angle 7 position 0.049" (1.25mm)
Specifications
- Mfr
- Adam Tech
- Style
- Board to Cable/Wire
- Series
- 125SH
- Features
- Solder Retention
- Packaging
- Tape & Reel (TR) || Cut Tape (CT) || Digi-Reel®
- Shrouding
- Shrouded - 4 Wall
- Part Status
- Active
- Termination
- Solder
- Applications
- -
- Contact Type
- Male Blade
- Contact Shape
- Rectangular
- Mounting Type
- Surface Mount, Right Angle
- Connector Type
Fastening TypeFriction Lock Pitch - Mating0.049" (1.25mm) Insulation Height0.134" (3.40mm) Base Product Number125SH-B Insulation MaterialThermoplastic, Glass Filled Operating Temperature-40°C ~ 85°C Contact Finish - MatingTin Number of Positions LoadedAll Material Flammability RatingUL94 V-0 Contact Finish Thickness - Post- Contact Finish Thickness - Mating- Pricing tiers
| Packaging | Qty | Unit price |
|---|
| Cut Tape (CT) & Digi-Reel® | 1 | ¥4.88000 |
| Cut Tape (CT) & Digi-Reel® | 10 | ¥4.12700 |
| Cut Tape (CT) & Digi-Reel® | 100 | ¥3.50320 |
| Cut Tape (CT) & Digi-Reel® | 500 | ¥3.12688 |
| Tape & Reel (TR) | 1,500 | ¥2.89351 |
| Tape & Reel (TR) | 3,000 | ¥2.75537 |
| Tape & Reel (TR) | 4,500 | ¥2.67766 |
| Tape & Reel (TR) | 7,500 | ¥2.58289 |
| Tape & Reel (TR) | 10,500 | ¥2.52234 |
| Tape & Reel (TR) | 15,000 | ¥2.45969 |
