Description

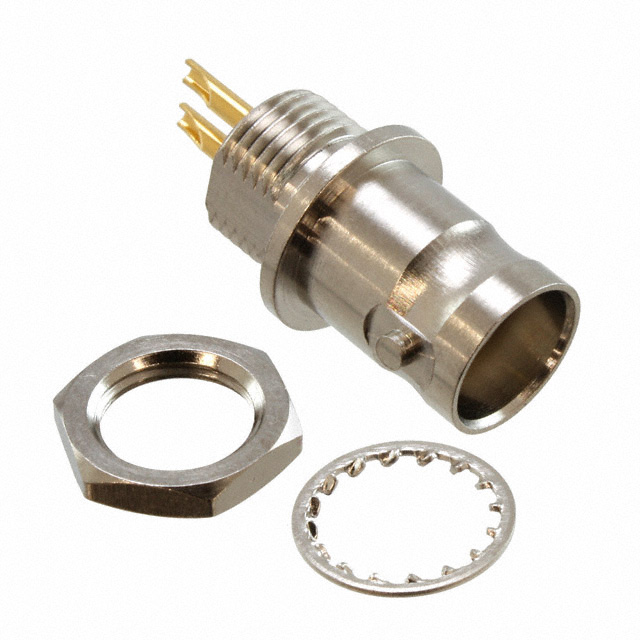

BNC, Twinaxial Connector Jack, Female Socket and Male Pin 78 Ohms Panel Mount Solder Cup
Specifications
- Mfr
- Amphenol RF
- Series
- -
- Features
- -
- Includes
- 3 pcs - 1 Connector, 1 Lockwasher, 1 Nut
- Impedance
- 78 Ohms
- Packaging
- Bag
- Body Finish
- Nickel
- Cable Group
- -
- Part Status
- Active
- Body Material
- Brass
- Housing Color
- Silver
- Mating Cycles
- 500
- Mounting Type
- Panel Mount
Fastening TypeBayonet Lock Connector StyleBNC, Twinaxial Mounting FeatureBulkhead - Rear Side Nut Contact TerminationSolder Cup Dielectric MaterialPolybutylene Terephthalate (PBT) Operating Temperature-40°C ~ 60°C Center Contact PlatingGold Center Contact MaterialBrass; Phosphor Bronze Pricing tiers
| Packaging | Qty | Unit price |
|---|
| Bag | 1 | ¥73.69000 |
| Bag | 10 | ¥62.61200 |
| Bag | 25 | ¥58.68720 |
| Bag | 50 | ¥55.88520 |
| Bag | 100 | ¥53.21820 |
| Bag | 300 | ¥49.25000 |
| Bag | 500 | ¥47.50778 |
| Bag | 1,000 | ¥45.24239 |
