Description

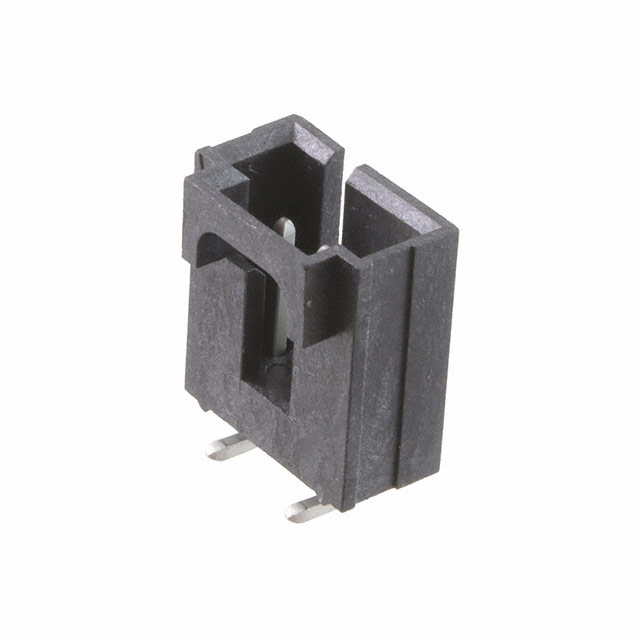

Connector Header Surface Mount 3 position 0.100" (2.54mm)
Specifications
- Mfr
- Molex
- Style
- Board to Cable/Wire
- Series
- SL 171973
- Features
- Polarizing Key
- Packaging
- Tube
- Shrouding
- Shrouded - 4 Wall
- Part Status
- Active
- Termination
- Solder
- Applications
- General Purpose
- Contact Type
- Male Pin
- Contact Shape
- Square
- Mounting Type
- Surface Mount
- Connector Type
- Header
Pitch - Mating0.100" (2.54mm) Insulation Height0.465" (11.80mm) Base Product Number171973 Insulation MaterialLiquid Crystal Polymer (LCP) Operating Temperature-40°C ~ 105°C Contact Finish - MatingTin Contact Length - Mating0.240" (6.10mm) Number of Positions LoadedAll Material Flammability RatingUL94 V-0 Contact Finish Thickness - Post100.0µin (2.54µm) Contact Finish Thickness - Mating100.0µin (2.54µm) Pricing tiers
| Packaging | Qty | Unit price |
|---|
| Tube | 1 | ¥13.81000 |
| Tube | 53 | ¥10.40151 |
| Tube | 106 | ¥9.90453 |
| Tube | 530 | ¥8.84092 |
| Tube | 1,007 | ¥8.44943 |
| Tube | 5,035 | ¥7.54289 |
| Tube | 10,017 | ¥7.18592 |
