Description

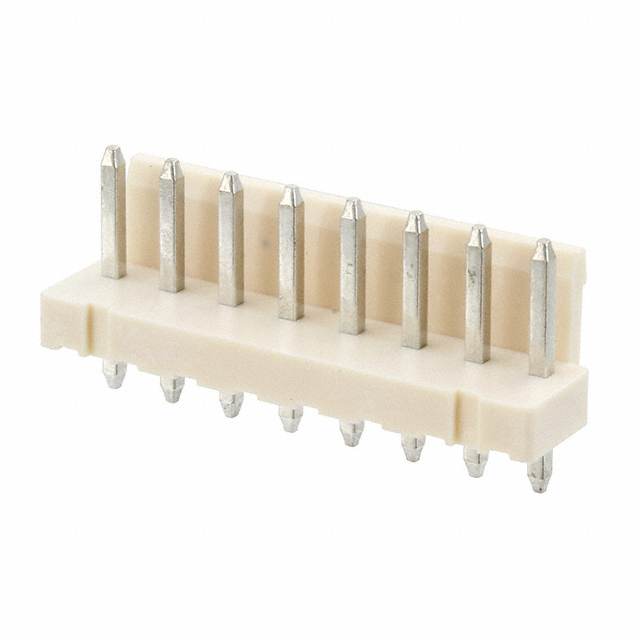

Connector Header Through Hole 8 position 0.156" (3.96mm)
Specifications
- Mfr
- TE Connectivity AMP Connectors
- Style
- Board to Cable/Wire
- Series
- Economy Power
- Features
- Glow Wire Compliant
- Packaging
- Bulk
- Shrouding
- Shrouded - 1 Wall
- Part Status
- Last Time Buy
- Termination
- Solder
- Applications
- General Purpose, Industrial, Lighting
- Contact Type
- Male Pin
- Contact Shape
- Square
- Mounting Type
- Through Hole
- Connector Type
- Header
Fastening TypeLocking Ramp Pitch - Mating0.156" (3.96mm) Insulation Height0.127" (3.22mm) Base Product Number1744489 Insulation MaterialPolyamide (PA), Nylon Contact Length - Post0.145" (3.68mm) Current Rating (Amps)7.5A Operating Temperature-25°C ~ 105°C Overall Contact Length0.575" (14.60mm) Contact Finish - MatingTin Contact Length - Mating0.303" (7.70mm) Number of Positions LoadedAll Material Flammability RatingUL94 V-0 Contact Finish Thickness - Post120.0µin (3.05µm) Contact Finish Thickness - Mating120.0µin (3.05µm) Pricing tiers
| Packaging | Qty | Unit price |
|---|
| Bulk | 10,000 | ¥2.64469 |
