Request this MPN now. Sourcing more than one part? Upload your BOM and we can consolidate component sourcing into one quotation.
Description

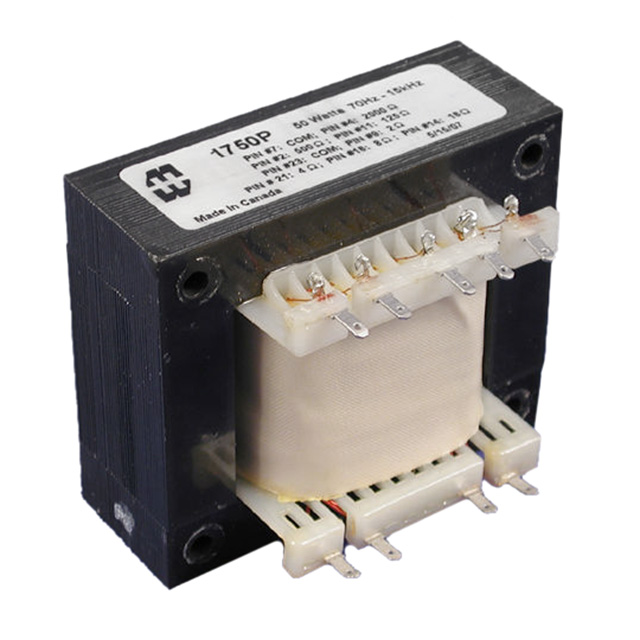

3.4kCT Impedance Primary Ohms 2, 4, 8, 16 Impedance Secondary Ohms 14.24:1 Audio Transformer 50Hz ~ 12kHz Chassis Mount
Specifications
- Series
- 1750
- Weight
- 0.625 lb (283.5 g)
- Packaging
- Box
- Part Status
- Active
- Power Level
- 50W
- Return Loss
- -
- Manufacturer
- Hammond Manufacturing
- Mounting Type
- Chassis Mount
- Insertion Loss
- -
- Approval Agency
- -
- Frequency Range
- 50Hz ~ 12kHz
- Size / Dimension
- 3.750" L x 3.090" W (95.25mm x 78.49mm)
- Transformer Type
Termination StyleSolder Lug Height - Seated (Max)3.188" (80.98mm) Impedance - Primary (Ohms)3.4kCT Impedance - Secondary (Ohms)2, 4, 8, 16 DC Resistance (DCR) - Primary41.3Ohm, 40.5Ohm, 81.8Ohm DC Resistance (DCR) - Secondary120mOhm, 150mOhm, 210mOhm Turns Ratio - Primary:Secondary14.24:1 Pricing tiers
| Packaging | Qty | Unit price |
|---|
| Box | 1 | ¥1,194.85000 |
| Box | 10 | ¥1,073.16100 |
| Box | 25 | ¥1,027.99280 |
| Box | 50 | ¥995.01220 |
