Description

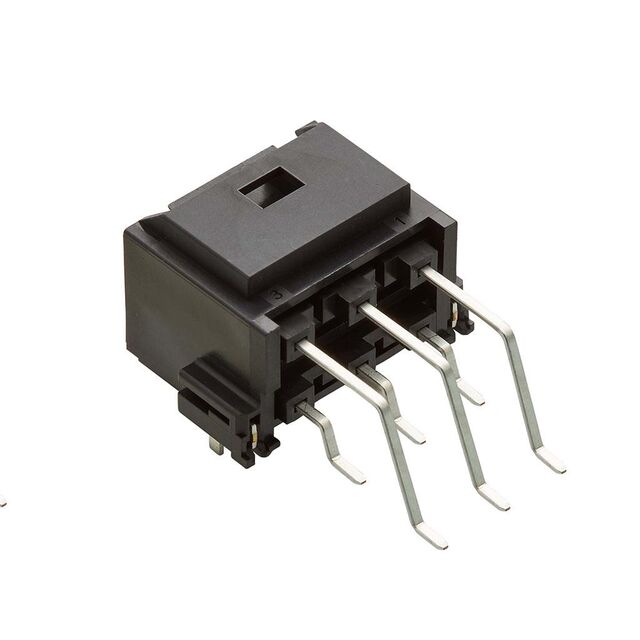

Connector Header Surface Mount, Right Angle 6 position 0.256" (6.50mm)
Specifications
- Mfr
- Molex
- Style
- Board to Cable/Wire
- Series
- CP-6.5 203555
- Features
- Board Guide, Solder Retention
- Packaging
- Tape & Reel (TR)
- Shrouding
- Shrouded - 4 Wall
- Part Status
- Active
- Termination
- Solder
- Applications
- -
- Contact Type
- Male Pin
- Contact Shape
- Rectangular
- Mounting Type
- Surface Mount, Right Angle
- Connector Type
- Header
Fastening TypeLatch Holder Pitch - Mating0.256" (6.50mm) Contact MaterialCopper Alloy Insulation Height0.602" (15.29mm) Base Product Number203555 Insulation MaterialPolyamide (PA), Nylon Row Spacing - Mating0.256" (6.50mm) Current Rating (Amps)Varies by Wire Gauge Operating Temperature-40°C ~ 105°C Contact Finish - MatingTin Number of Positions Loaded6 Material Flammability RatingUL94 V-0 Contact Finish Thickness - Post50.0µin (1.27µm) Contact Finish Thickness - Mating50.0µin (1.27µm) Pricing tiers
| Packaging | Qty | Unit price |
|---|
| Tape & Reel (TR) | 1,200 | ¥24.73520 |
