Description

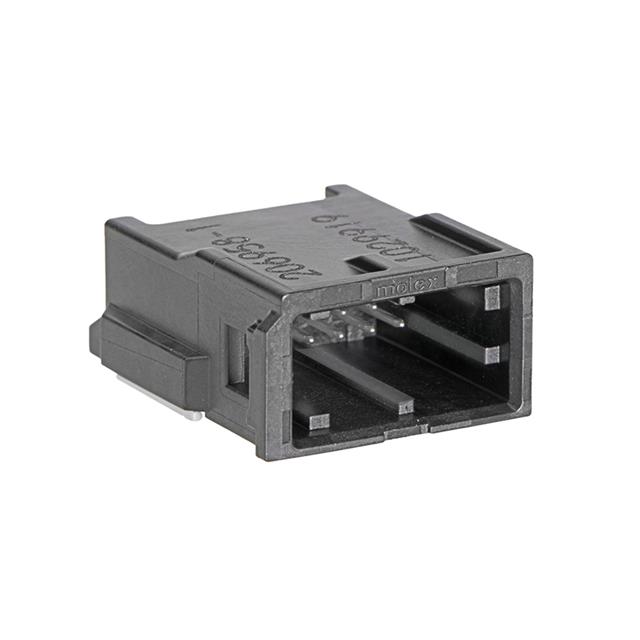

Connector Header Surface Mount, Right Angle 10 position 0.071" (1.80mm)
Specifications
- Mfr
- Molex
- Style
- Board to Cable/Wire
- Series
- CONNTAK50 206958
- Features
- -
- Packaging
- Bulk
- Shrouding
- Shrouded - 4 Wall
- Part Status
- Obsolete
- Termination
- Solder
- Applications
- -
- Contact Type
- Male Pin
- Contact Shape
- Square
- Mounting Type
- Surface Mount, Right Angle
- Connector Type
- Header
- Fastening Type
- Latch Holder
- Number of Rows
- 2
- Pitch - Mating
- 0.071" (1.80mm)
- Voltage Rating
- 14VAC/DC
- Contact Material
- Brass
- Insulation Color
Insulation Height0.431" (10.95mm) Base Product Number206958 Insulation MaterialSyndiotactic Polystyrene (SPS), Glass Filled Row Spacing - Mating0.059" (1.50mm) Current Rating (Amps)Varies by Wire Gauge Operating Temperature-40°C ~ 105°C Contact Finish - MatingTin Number of Positions LoadedAll Material Flammability Rating- Contact Finish Thickness - Post- Contact Finish Thickness - Mating39.4µin (1.00µm)
