2077600471

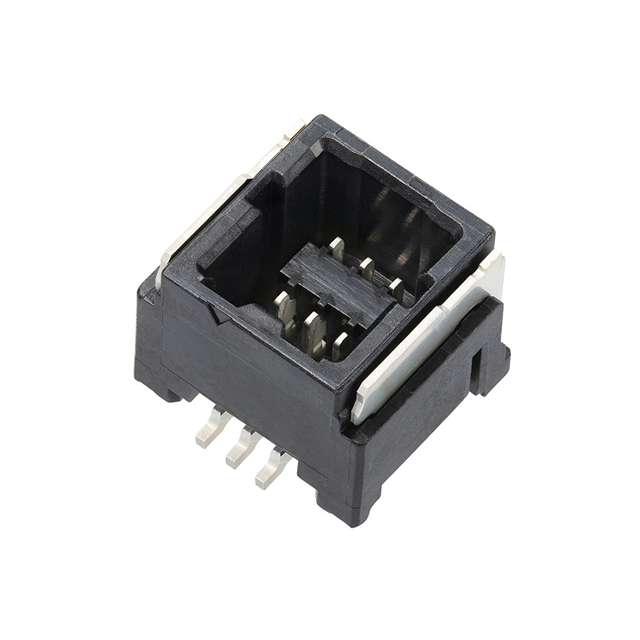

1.25W/B DL PLG ASSY 4P BL
Manufacturer: MolexIC code: 900-2077600471TR-ND - Tape & Reel (TR) || 900-2077600471CT-ND - Cut Tape (CT) || 900-2077600471DKR-ND - Digi-Reel® Request this MPN now. Sourcing more than one part? Upload your BOM and we can consolidate component sourcing into one quotation.
Description
Connector Header Surface Mount 4 position 0.049" (1.25mm)
Specifications
- Mfr
- Molex
- Style
- Board to Cable/Wire
- Series
- Micro-Lock PLUS 207760
- Features
- Solder Retention
- Packaging
- Tape & Reel (TR) || Cut Tape (CT) || Digi-Reel®
- Shrouding
- Shrouded - 4 Wall
- Part Status
- Active
- Termination
- Solder
- Applications
- -
- Contact Type
- Male Pin
- Contact Shape
- Rectangular
- Mounting Type
- Surface Mount
- Connector Type
- Header
Fastening TypeLatch Holder Pitch - Mating0.049" (1.25mm) Insulation Height0.285" (7.25mm) Base Product Number207760 Insulation MaterialPolyamide (PA), Nylon Contact Finish - PostTin-Bismuth Current Rating (Amps)Varies by Wire Gauge Operating Temperature-40°C ~ 105°C Contact Finish - MatingTin-Bismuth Number of Positions LoadedAll Material Flammability RatingUL94 V-0 Contact Finish Thickness - Post39.4µin (1.00µm) Contact Finish Thickness - Mating39.4µin (1.00µm) Pricing tiers
| Packaging | Qty | Unit price |
|---|
| Cut Tape (CT) & Digi-Reel® | 1 | ¥8.44000 |
| Cut Tape (CT) & Digi-Reel® | 10 | ¥7.12900 |
| Cut Tape (CT) & Digi-Reel® | 100 | ¥6.05860 |
| Tape & Reel (TR) | 500 | ¥5.40758 |
| Tape & Reel (TR) | 1,000 | ¥5.14939 |
| Tape & Reel (TR) | 1,500 | ¥5.00417 |
| Tape & Reel (TR) | 2,500 | ¥4.82706 |
| Tape & Reel (TR) | 3,500 | ¥4.71387 |
| Tape & Reel (TR) | 5,000 | ¥4.59676 |
| Tape & Reel (TR) | 12,500 | ¥4.30923 |
