Description

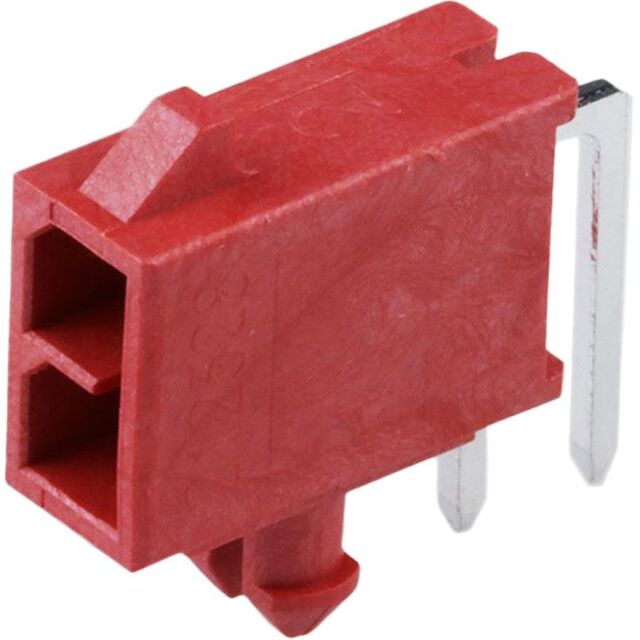

Connector Header Through Hole, Right Angle 2 position
Specifications
- Mfr
- Molex
- Style
- Board to Cable/Wire
- Series
- Micro-Fit Plus Versa
- Features
- Board Guide
- Packaging
- Bulk
- Shrouding
- Shrouded - 4 Wall
- Part Status
- Active
- Termination
- Solder
- Applications
- -
- Contact Type
- Male Pin
- Contact Shape
- Square
- Mounting Type
- Through Hole, Right Angle
- Connector Type
- Header
Contact MaterialCopper Alloy Insulation Height0.291" (7.40mm) Insulation MaterialLiquid Crystal Polymer (LCP), Glass Filled Row Spacing - Mating0.118" (3.00mm) Contact Finish - PostGold Contact Length - Post0.125" (3.18mm) Current Rating (Amps)Varies by Wire Gauge Operating Temperature-40°C ~ 105°C Contact Finish - MatingGold Number of Positions LoadedAll Material Flammability RatingUL94 V-0 Contact Finish Thickness - Post30.0µin (0.76µm) Contact Finish Thickness - Mating30.0µin (0.76µm) Pricing tiers
| Packaging | Qty | Unit price |
|---|
| Bulk | 5,412 | ¥10.89090 |
