Request this MPN now. Sourcing more than one part? Upload your BOM and we can consolidate component sourcing into one quotation.
Description

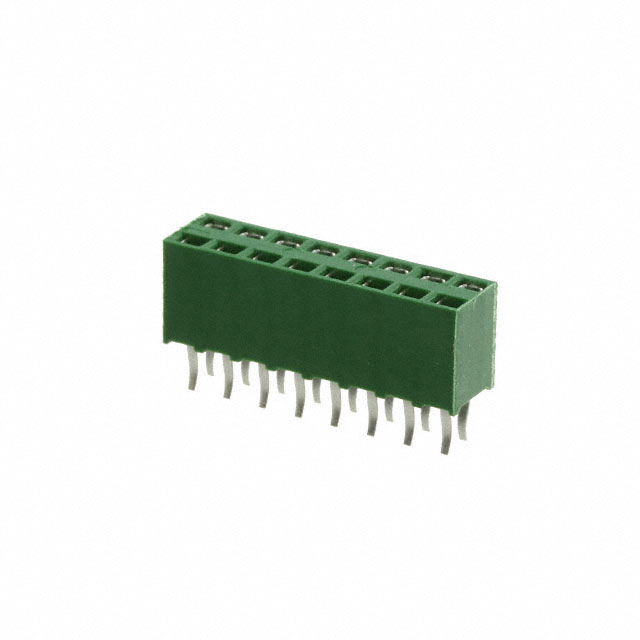

16 Position Receptacle Connector 0.100" (2.54mm) Through Hole Tin
Specifications
- Mfr
- TE Connectivity AMP Connectors
- Style
- Board to Board
- Series
- AMPMODU HV-100
- Features
- -
- Packaging
- Bulk
- Part Status
- Active
- Termination
- Kinked Pin, Solder
- Applications
- -
- Contact Type
- Female Socket
- Contact Shape
- Square
- Mounting Type
- Through Hole
- Connector Type
- Receptacle
- Fastening Type
- Push-Pull
Pitch - Mating0.100" (2.54mm) Contact MaterialPhosphor Bronze Insulation Height0.276" (7.00mm) Base Product Number215308 Insulation MaterialPolybutylene Terephthalate (PBT), Glass Filled Row Spacing - Mating0.100" (2.54mm) Contact Length - Post0.122" (3.10mm) Contact Finish - MatingTin Number of Positions LoadedAll Material Flammability RatingUL94 V-0 Contact Finish Thickness - Post98.4µin (2.50µm) Contact Finish Thickness - Mating98.4µin (2.50µm) Pricing tiers
| Packaging | Qty | Unit price |
|---|
| Bulk | 1,056 | ¥15.73898 |
