2159310470

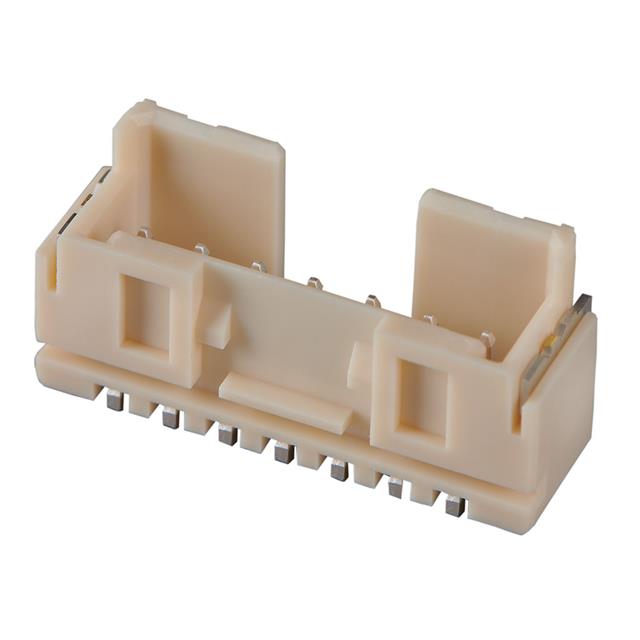

MINILOCK2.5WB SR HDR SMT VT NAT
Manufacturer: MolexIC code: 900-2159310470TR-ND - Tape & Reel (TR) || 900-2159310470CT-ND - Cut Tape (CT) || 900-2159310470DKR-ND - Digi-Reel® Request this MPN now. Sourcing more than one part? Upload your BOM and we can consolidate component sourcing into one quotation.
Description
Connector Header Surface Mount 4 position 0.098" (2.50mm)
Specifications
- Mfr
- Molex
- Style
- Board to Cable/Wire
- Series
- Mini-Lock 215931
- Features
- Solder Retention
- Packaging
- Tape & Reel (TR) || Cut Tape (CT) || Digi-Reel®
- Shrouding
- Shrouded - 4 Wall
- Part Status
- Active
- Termination
- Solder
- Applications
- -
- Contact Type
- Male Pin
- Contact Shape
- Square
- Mounting Type
- Surface Mount
- Connector Type
- Header
Pitch - Mating0.098" (2.50mm) Insulation Height0.419" (10.65mm) Base Product Number215931 Insulation MaterialPolyamide (PA), Nylon, Glass Filled Current Rating (Amps)Varies by Wire Gauge Operating Temperature-40°C ~ 105°C Contact Finish - MatingTin Number of Positions LoadedAll Material Flammability RatingUL94 V-0 Contact Finish Thickness - Post39.4µin (1.00µm) Contact Finish Thickness - Mating39.4µin (1.00µm) Pricing tiers
| Packaging | Qty | Unit price |
|---|
| Tape & Reel (TR) | 350 | ¥5.32777 |
| Tape & Reel (TR) | 700 | ¥5.07329 |
| Tape & Reel (TR) | 1,050 | ¥4.93010 |
| Cut Tape (CT) | 1 | ¥8.44000 |
| Cut Tape (CT) | 10 | ¥7.20300 |
| Cut Tape (CT) | 100 | ¥6.11810 |
| Digi-Reel® | 1 | ¥9.43000 |
| Digi-Reel® | 10 | ¥7.78200 |
| Digi-Reel® | 100 | ¥6.48370 |
