2189890510

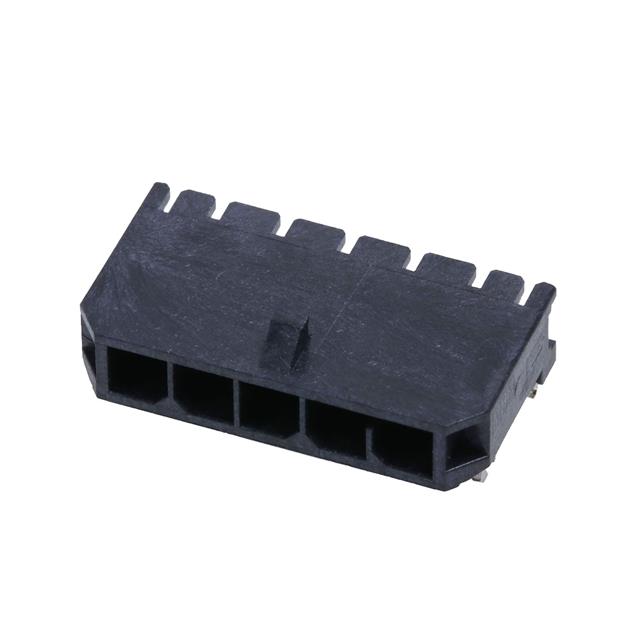

MICRO-FIT+SR SMT RA CLIP 5CKT TI
Manufacturer: MolexIC code: 900-2189890510TR-ND - Tape & Reel (TR) || 900-2189890510CT-ND - Cut Tape (CT) || 900-2189890510DKR-ND - Digi-Reel® Request this MPN now. Sourcing more than one part? Upload your BOM and we can consolidate component sourcing into one quotation.
Description
Connector Header Surface Mount, Right Angle 5 position 0.118" (3.00mm)
Specifications
- Mfr
- Molex
- Style
- Board to Cable/Wire
- Series
- Micro-Fit+ 218989
- Features
- Board Lock, Retention Clips
- Packaging
- Tape & Reel (TR) || Cut Tape (CT) || Digi-Reel®
- Shrouding
- Shrouded - 4 Wall
- Part Status
- Active
- Termination
- Solder
- Applications
- -
- Contact Type
- Male Pin
- Contact Shape
- Square
- Mounting Type
- Surface Mount, Right Angle
- Connector Type
- Header
Fastening TypeLocking Ramp Pitch - Mating0.118" (3.00mm) Contact MaterialCopper Alloy Insulation Height0.173" (4.40mm) Insulation MaterialLiquid Crystal Polymer (LCP), Glass Filled Current Rating (Amps)13A per Contact Operating Temperature-40°C ~ 105°C Contact Finish - MatingTin Number of Positions LoadedAll Material Flammability RatingUL94 V-0 Contact Finish Thickness - Post- Contact Finish Thickness - Mating- Pricing tiers
| Packaging | Qty | Unit price |
|---|
| Tape & Reel (TR) | 320 | ¥18.45059 |
| Tape & Reel (TR) | 640 | ¥17.57023 |
| Tape & Reel (TR) | 960 | ¥17.07485 |
| Tape & Reel (TR) | 1,600 | ¥16.47083 |
| Tape & Reel (TR) | 2,240 | ¥16.08480 |
| Tape & Reel (TR) | 3,200 | ¥15.68553 |
| Cut Tape (CT) | 1 | ¥64.09000 |
| Cut Tape (CT) | 10 | ¥49.69400 |
| Cut Tape (CT) | 100 | ¥40.14500 |
| Digi-Reel® | 1 | ¥64.01000 |
| Digi-Reel® | 10 | ¥56.00400 |
| Digi-Reel® | 100 | ¥45.33940 |
