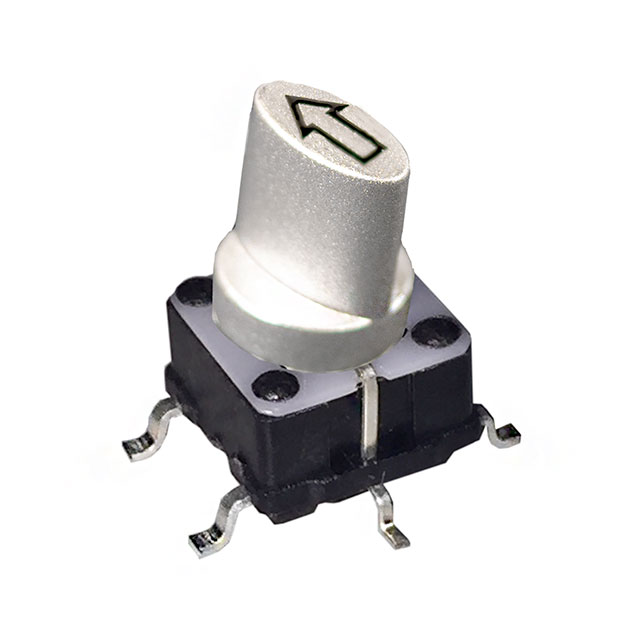

228AMVARFAMSCR
SWITCH TACTILE SPST-NO 0.05A 12V
Manufacturer: CTS ElectrocomponentsIC code: 119-228AMVARFAMSCRTR-ND - Tape & Reel (TR) || 119-228AMVARFAMSCRCT-ND - Cut Tape (CT) || 119-228AMVARFAMSCRDKR-ND - Digi-Reel® Request this MPN now. Sourcing more than one part? Upload your BOM and we can consolidate component sourcing into one quotation.
Description
Tactile Switch SPST-NO Top Actuated Surface Mount
Specifications
- Mfr
- CTS Electrocomponents
- Series
- 228A
- Circuit
- SPST-NO
- Outline
- 7.20mm x 6.80mm
- Features
- -
- Packaging
- Tape & Reel (TR) || Cut Tape (CT) || Digi-Reel®
- Part Status
- Active
- Illumination
- Illuminated
- Actuator Type
- Oval Button
- Mounting Type
- Surface Mount
- Switch Travel
- 0.25mm
- Mechanical Life
- 100,000 Cycles
- Operating Force
- 160gf
Termination StyleGull Wing Base Product Number228AMVA Actuator OrientationTop Actuated Operating Temperature-25°C ~ 70°C Contact Rating @ Voltage0.05A @ 12VDC Illumination Type, ColorLED, Red Actuator Length, Right Angle- Illumination Voltage (Nominal)- Actuator Height off PCB, Vertical14.40mm Pricing tiers
| Packaging | Qty | Unit price |
|---|
| Tape & Reel (TR) | 1,350 | ¥10.90934 |
| Cut Tape (CT) | 1 | ¥17.37000 |
| Cut Tape (CT) | 10 | ¥14.63000 |
| Cut Tape (CT) | 25 | ¥13.56960 |
| Cut Tape (CT) | 100 | ¥12.08660 |
| Digi-Reel® | 1 | ¥18.61000 |
| Digi-Reel® | 10 | ¥15.10100 |
| Digi-Reel® | 25 | ¥13.88680 |
| Digi-Reel® | 100 | ¥12.21150 |
