2314868-4
4P,2MM,BB,REC,SRVT,2.0,0.1AU,TB,
Manufacturer: TE Connectivity AMP ConnectorsIC code: 17-2314868-4-ND Request this MPN now. Sourcing more than one part? Upload your BOM and we can consolidate component sourcing into one quotation.
Description

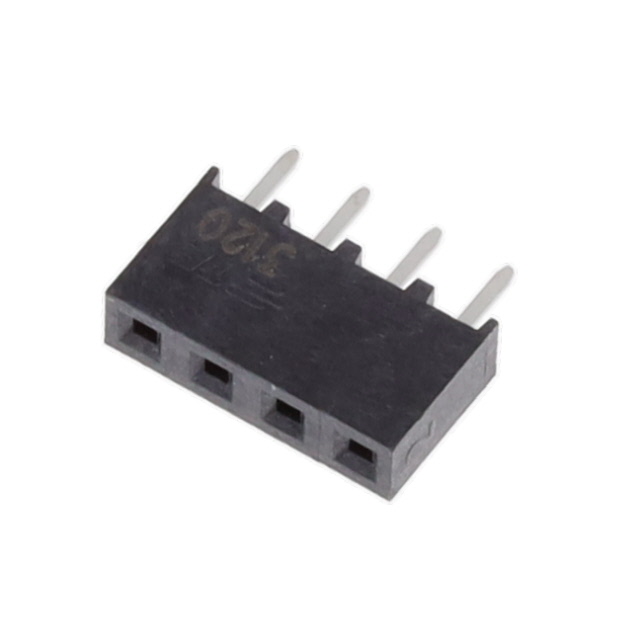

4 Position Receptacle Connector 0.079" (2.00mm) Through Hole Gold
Specifications
- Mfr
- TE Connectivity AMP Connectors
- Style
- Board to Board
- Series
- AMPMODU
- Features
- Pick and Place
- Packaging
- Tube
- Part Status
- Active
- Termination
- Solder
- Applications
- -
- Contact Type
- Female Socket
- Contact Shape
- Square
- Mounting Type
- Through Hole
- Connector Type
- Receptacle
- Fastening Type
- Push-Pull
Pitch - Mating0.079" (2.00mm) Contact MaterialPhosphor Bronze Insulation Height0.177" (4.50mm) Base Product Number2314868 Insulation MaterialLiquid Crystal Polymer (LCP) Contact Length - Post0.079" (2.00mm) Operating Temperature-40°C ~ 125°C Contact Finish - MatingGold Number of Positions LoadedAll Material Flammability RatingUL94 V-0 Contact Finish Thickness - Post118.1µin (3.00µm) Contact Finish Thickness - Mating3.94µin (0.100µm) Pricing tiers
| Packaging | Qty | Unit price |
|---|
| Tube | 1 | ¥8.27000 |
| Tube | 65 | ¥6.15662 |
| Tube | 130 | ¥5.86277 |
| Tube | 520 | ¥5.31585 |
| Tube | 1,040 | ¥5.06203 |
| Tube | 5,005 | ¥4.53095 |
| Tube | 10,010 | ¥4.31485 |
