Description

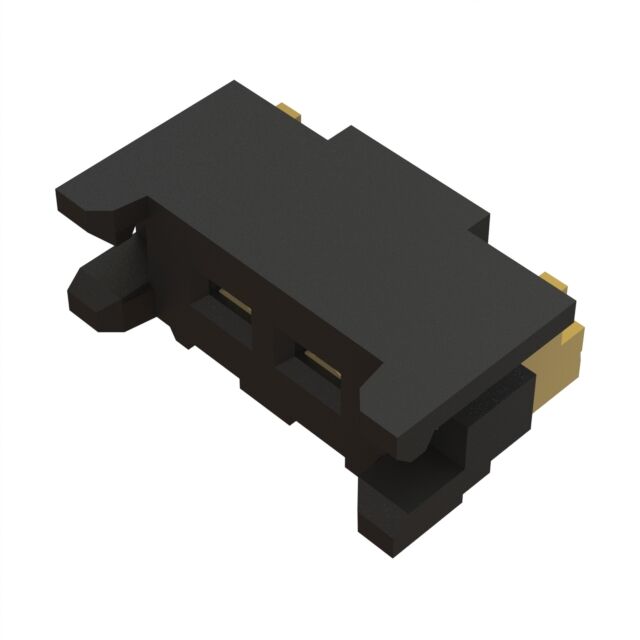

2 Position Receptacle Connector 0.050" (1.27mm) Surface Mount, Right Angle Gold
Specifications
- Mfr
- KYOCERA AVX
- Style
- Board to Cable/Wire
- Series
- 8005, Kyocera
- Features
- Solder Retention
- Packaging
- Tape & Reel (TR) || Cut Tape (CT) || Digi-Reel®
- Part Status
- Active
- Termination
- Solder
- Applications
- -
- Contact Type
- Female Socket
- Contact Shape
- Rectangular
- Mounting Type
- Surface Mount, Right Angle
- Connector Type
- Receptacle
- Fastening Type
Pitch - Mating0.050" (1.27mm) Contact MaterialCopper Alloy Insulation Height0.075" (1.90mm) Base Product Number248005 Insulation MaterialPlastic Current Rating (Amps)1A per Contact Operating Temperature-55°C ~ 80°C Contact Finish - MatingGold Number of Positions LoadedAll Material Flammability Rating- Contact Finish Thickness - Post- Contact Finish Thickness - Mating15.0µin (0.38µm) Pricing tiers
| Packaging | Qty | Unit price |
|---|
| Cut Tape (CT) & Digi-Reel® | 1 | ¥12.07000 |
| Cut Tape (CT) & Digi-Reel® | 10 | ¥10.25500 |
| Cut Tape (CT) & Digi-Reel® | 25 | ¥9.60960 |
| Cut Tape (CT) & Digi-Reel® | 50 | ¥9.15160 |
| Cut Tape (CT) & Digi-Reel® | 100 | ¥8.71410 |
| Cut Tape (CT) & Digi-Reel® | 250 | ¥8.16812 |
| Cut Tape (CT) & Digi-Reel® | 500 | ¥7.77792 |
| Cut Tape (CT) & Digi-Reel® | 1,000 | ¥7.40660 |
| Tape & Reel (TR) | 3,000 | ¥6.99142 |
| Tape & Reel (TR) | 6,000 | ¥6.65800 |
| Tape & Reel (TR) | 9,000 | ¥6.47045 |
