Description

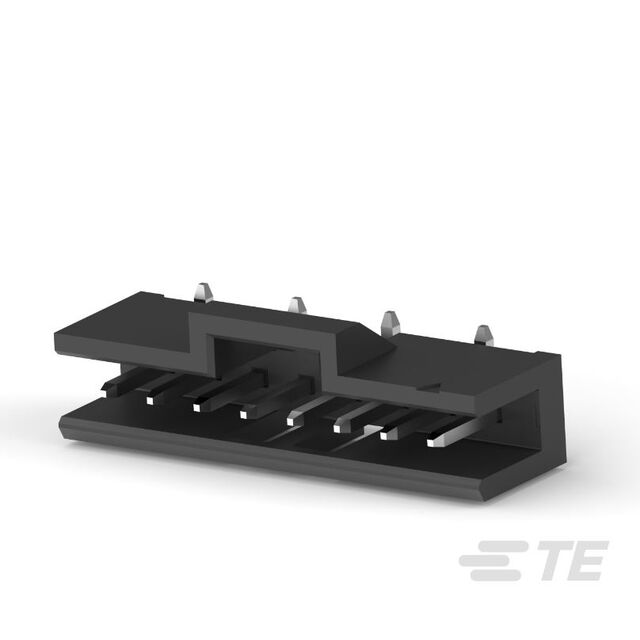

Connector Header Surface Mount 8 position 0.079" (2.00mm)
Specifications
- Mfr
- TE Connectivity AMP Connectors
- Style
- Board to Board or Cable
- Series
- AMPMODU 2MM
- Features
- Pick and Place
- Packaging
- Bulk
- Shrouding
- Shrouded - 2 Wall
- Part Status
- Active
- Termination
- Solder
- Applications
- -
- Contact Type
- Male Pin
- Contact Shape
- Square
- Mounting Type
- Surface Mount
- Connector Type
- Header
Pitch - Mating0.079" (2.00mm) Contact MaterialPhosphor Bronze Insulation Height0.217" (5.51mm) Base Product Number2823199 Insulation MaterialThermoplastic Operating Temperature-40°C ~ 105°C Contact Finish - MatingTin Contact Length - Mating0.157" (4.00mm) Number of Positions LoadedAll Material Flammability RatingUL94 V-0 Contact Finish Thickness - Post12.0µin (0.30µm) Contact Finish Thickness - Mating118.1µin (3.00µm) Pricing tiers
| Packaging | Qty | Unit price |
|---|
| Bulk | 3,150 | ¥7.62173 |
