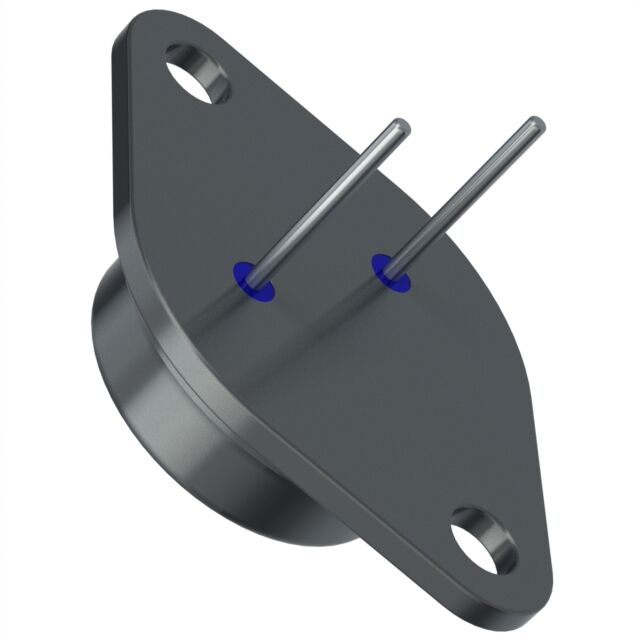

2N5303 PBFREE
TRANS NPN 80V 20A TO-3
Manufacturer: Central Semiconductor CorpIC code: 1514-2N5303PBFREE-ND
Request this MPN now. Sourcing more than one part? Upload your BOM and we can consolidate component sourcing into one quotation.
Description
Bipolar (BJT) Transistor NPN 80 V 20 A 2MHz 200 W Through Hole TO-3
Specifications
- Mfr
- Central Semiconductor Corp
- Series
- -
- Packaging
- Tube
- Part Status
- Obsolete
- Power - Max
- 200 W
- Mounting Type
- Through Hole
- Package / Case
- TO-204AA, TO-3
- Transistor Type
- NPN
- Operating Temperature
- -65°C ~ 200°C (TJ)
- Frequency - Transition
- 2MHz
- Supplier Device Package
- TO-3
- Vce Saturation (Max) @ Ib, Ic
- -
- Current - Collector (Ic) (Max)
- 20 A
- Current - Collector Cutoff (Max)
- -
- DC Current Gain (hFE) (Min) @ Ic, Vce
- -
- Voltage - Collector Emitter Breakdown (Max)
- 80 V
