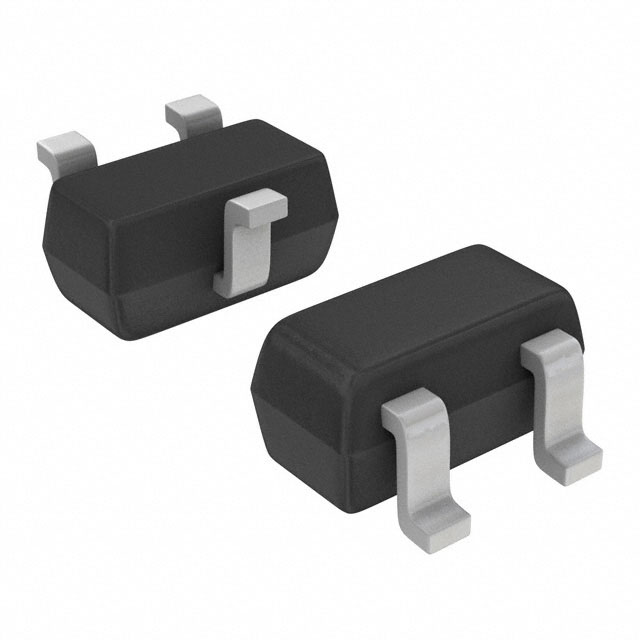

2SC536300L
RF TRANS NPN 6V 10GHZ SSMINI3-G1
Manufacturer: Panasonic Electronic ComponentsIC code: 2SC536300LTR-ND - Tape & Reel (TR)
Request this MPN now. Sourcing more than one part? Upload your BOM and we can consolidate component sourcing into one quotation.
Description
RF Transistor NPN 6V 30mA 10GHz 125mW Surface Mount SSmini3-G1
Specifications
- Gain
- 6.5dB
- Series
- -
- Packaging
- Tape & Reel (TR)
- Part Status
- Obsolete
- Power - Max
- 125mW
- Manufacturer
- Panasonic Electronic Components
- Mounting Type
- Surface Mount
- Package / Case
- SC-75, SOT-416
- Transistor Type
- NPN
- Base Product Number
- 2SC5363
- Operating Temperature
- 125°C (TJ)
- Frequency - Transition
- 10GHz
- Supplier Device Package
- SSmini3-G1
- Noise Figure (dB Typ @ f)
- 1.7dB @ 900MHz
- Current - Collector (Ic) (Max)
- 30mA
- DC Current Gain (hFE) (Min) @ Ic, Vce
- 40 @ 10mA, 3V
- Voltage - Collector Emitter Breakdown (Max)
- 6V
