30738-00002-001

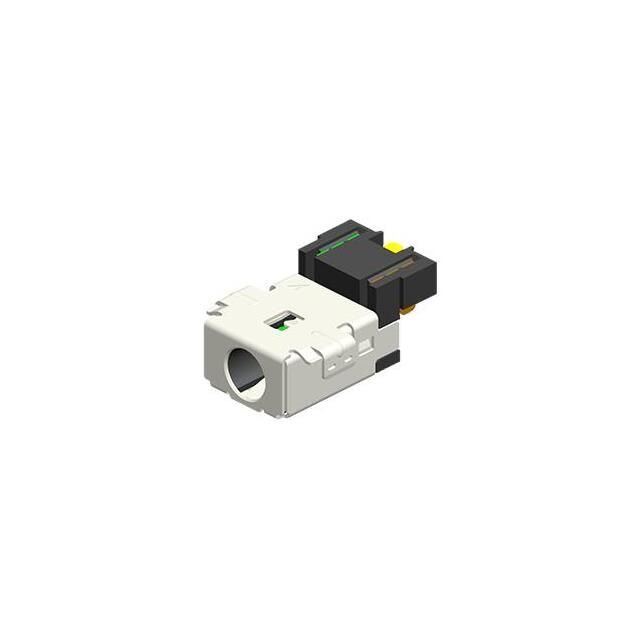

3MM DC POWER JACK CH=0.0
Manufacturer: Aces ConnectorsIC code: 4294-30738-00002-001TR-ND - Tape & Reel (TR) || 4294-30738-00002-001CT-ND - Cut Tape (CT) || 4294-30738-00002-001DKR-ND - Digi-Reel® Request this MPN now. Sourcing more than one part? Upload your BOM and we can consolidate component sourcing into one quotation.
Description
Power Barrel Connector Jack Through Hole, Right Angle
Specifications
- Gender
- Male
- Series
- -
- Features
- -
- Includes
- -
- Packaging
- Tape & Reel (TR) || Cut Tape (CT) || Digi-Reel®
- Shielding
- Shielded
- Body Color
- Black
- Part Status
- Active
- Termination
- Solder
- Thread Size
- -
- Manufacturer
- Aces Connectors
- Body Material
- -
- Mounting Type
- Through Hole, Right Angle
Actual Diameter0.039" (1.00mm ID), 0.122" (3.10mm OD) Contact MaterialCopper Alloy Housing MaterialPolyamide (PA4T), Nylon 4T, Glass Filled Internal Switch(s)Does Not Contain Switch Operating Temperature-40°C ~ 85°C Contact Material - PlatingGold Material Flammability RatingUL94 V-0 Number of Positions/Contacts3 Conductors, 3 Contacts Industry Recognized Mating Diameter- Pricing tiers
| Packaging | Qty | Unit price |
|---|
| Cut Tape (CT) & Digi-Reel® | 1 | ¥10.42000 |
| Cut Tape (CT) & Digi-Reel® | 10 | ¥8.87300 |
| Cut Tape (CT) & Digi-Reel® | 25 | ¥8.31240 |
| Cut Tape (CT) & Digi-Reel® | 50 | ¥7.91540 |
| Cut Tape (CT) & Digi-Reel® | 100 | ¥7.53750 |
| Cut Tape (CT) & Digi-Reel® | 250 | ¥7.06496 |
| Tape & Reel (TR) | 600 | ¥6.64150 |
| Tape & Reel (TR) | 1,200 | ¥6.32444 |
| Tape & Reel (TR) | 1,800 | ¥6.14612 |
| Tape & Reel (TR) | 3,000 | ¥5.92863 |
| Tape & Reel (TR) | 4,200 | ¥5.78960 |
| Tape & Reel (TR) | 6,000 | ¥5.64581 |
| Tape & Reel (TR) | 15,000 | ¥5.29276 |
