Description

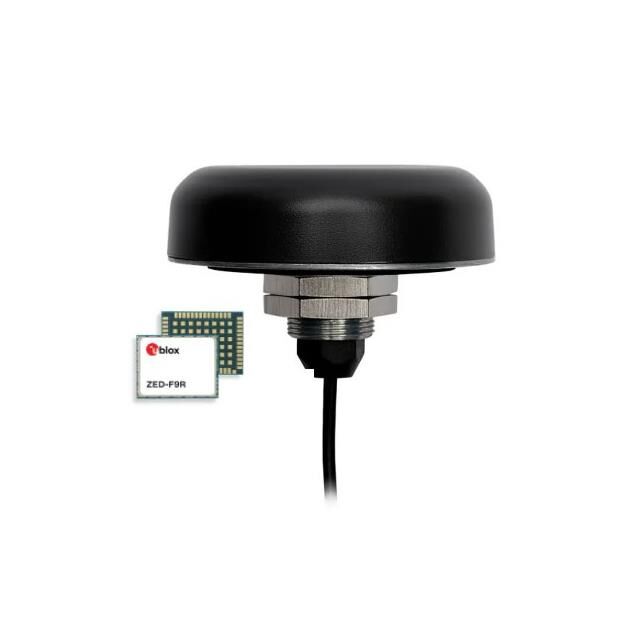

The TW5386 is an advanced multi-band (L1/L2), multi-constellation integrated GNSS receiver/antenna system featuring an Inertial Measurement Unit (IMU) for Untethered Dead Reckoning and RTK capabilities. It achieves exceptional accuracy: sub-1 meter standalone, sub-6 cm with PPP-RTK corrections, and sub-1 cm with RTK corrections. The device combines a state-of-the-art GNSS receiver supporting all major satellite constellations with IMU Sensor Fusion technology, enabling superior performance in challenging environments like urban canyons. Using Tallysman Accutenna® technology and multi-stage filtering, it effectively mitigates interference and maintains positioning during signal obstruction, while supporting various correction services for precise point positioning.
Specifications
- Note
- Combines Tallysman world-class antenna technology with u-Blox dual frequency receivers using PointPerfect PPP-RTK corrections
- Type
- PointPerfect PPP-RTK GNSS Correction Services
- Series
- TW5386
- Contents
- Board(s), Accessories
- Frequency
- -
- Packaging
- Bulk
- Part Status
- Active
- Antenna Type
- RJ45 Antenna(s) Included
