Request this MPN now. Sourcing more than one part? Upload your BOM and we can consolidate component sourcing into one quotation.
Description

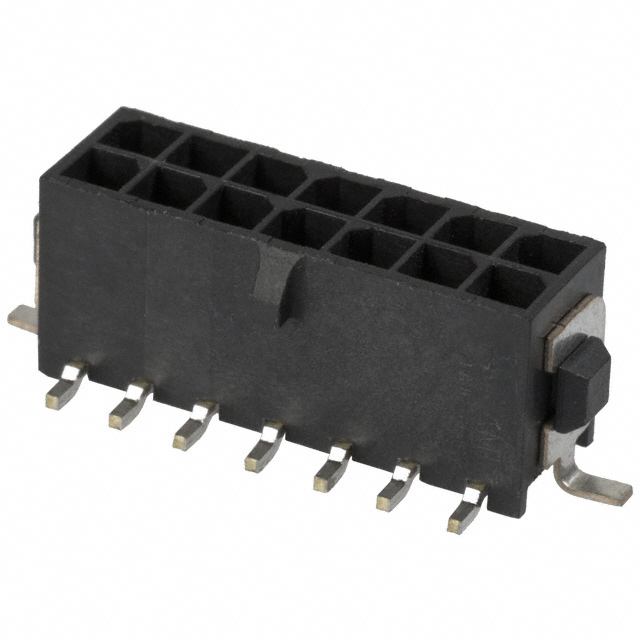

Connector Header Surface Mount 14 position 0.118" (3.00mm)
Specifications
- Mfr
- TE Connectivity AMP Connectors
- Style
- Board to Cable/Wire
- Series
- Micro MATE-N-LOK
- Features
- Solder Retention
- Packaging
- Tape & Reel (TR) || Cut Tape (CT) || Digi-Reel®
- Shrouding
- Shrouded - 4 Wall
- Part Status
- Active
- Termination
- Solder
- Applications
- General Purpose
- Contact Type
- Male Pin
- Contact Shape
- Square
- Mounting Type
- Surface Mount
- Connector Type
- Header
Fastening TypeLocking Ramp Pitch - Mating0.118" (3.00mm) Insulation Height0.364" (9.25mm) Base Product Number794636 Insulation MaterialPolyamide (PA), Nylon Row Spacing - Mating0.118" (3.00mm) Current Rating (Amps)Varies by Wire Gauge Operating Temperature-40°C ~ 105°C Contact Finish - MatingTin Number of Positions LoadedAll Material Flammability RatingUL94 V-0 Contact Finish Thickness - Post100.0µin (2.54µm) Contact Finish Thickness - Mating100.0µin (2.54µm) Pricing tiers
| Packaging | Qty | Unit price |
|---|
| Cut Tape (CT) & Digi-Reel® | 1 | ¥33.33000 |
| Cut Tape (CT) & Digi-Reel® | 10 | ¥28.31600 |
| Tape & Reel (TR) | 175 | ¥23.13137 |
| Tape & Reel (TR) | 350 | ¥22.02723 |
| Tape & Reel (TR) | 525 | ¥21.40621 |
| Tape & Reel (TR) | 875 | ¥20.64880 |
| Tape & Reel (TR) | 1,225 | ¥20.16480 |
| Tape & Reel (TR) | 1,750 | ¥19.66415 |
| Tape & Reel (TR) | 4,375 | ¥18.43450 |
