Request this MPN now. Sourcing more than one part? Upload your BOM and we can consolidate component sourcing into one quotation.
Description

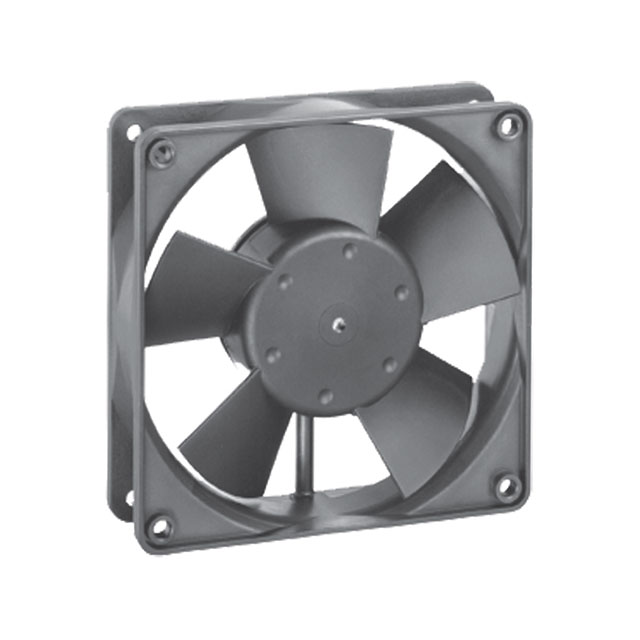

Fan Tubeaxial 24VDC Square - 119mm L x 119mm H Ball 100.1 CFM (2.80m³/min) 2 Wire Leads
Specifications
- Mfr
- ebm-papst Inc.
- RPM
- 2800 RPM
- Noise
- 45.0dB(A)
- Width
- 32.00mm
- Series
- 4300U
- Weight
- 0.5 lb (226.8 g)
- Air Flow
- 100.1 CFM (2.80m³/min)
- Fan Type
- Tubeaxial
- Features
- -
- Packaging
- Box
- Part Status
- Active
- Termination
- 2 Wire Leads
- Bearing Type
- Ball
- Power (Watts)
Approval AgencyCE, CSA, UL, VDE Lifetime @ Temp.62500 Hrs @ 40°C Material - BladePolyamide (PA), Nylon, Fiberglass Reinforced Material - FramePolybutylene Terephthalate (PBT), Fiberglass Reinforced Size / DimensionSquare - 119mm L x 119mm H Ingress ProtectionIP68 - Dust Tight, Waterproof Current Rating (Amps)0.210A Operating Temperature-4 ~ 167°F (-20 ~ 75°C) Pricing tiers
| Packaging | Qty | Unit price |
|---|
| Box | 1 | ¥623.51000 |
| Box | 10 | ¥505.95900 |
| Box | 25 | ¥462.80280 |
| Box | 50 | ¥457.44140 |
