Request this MPN now. Sourcing more than one part? Upload your BOM and we can consolidate component sourcing into one quotation.
Description

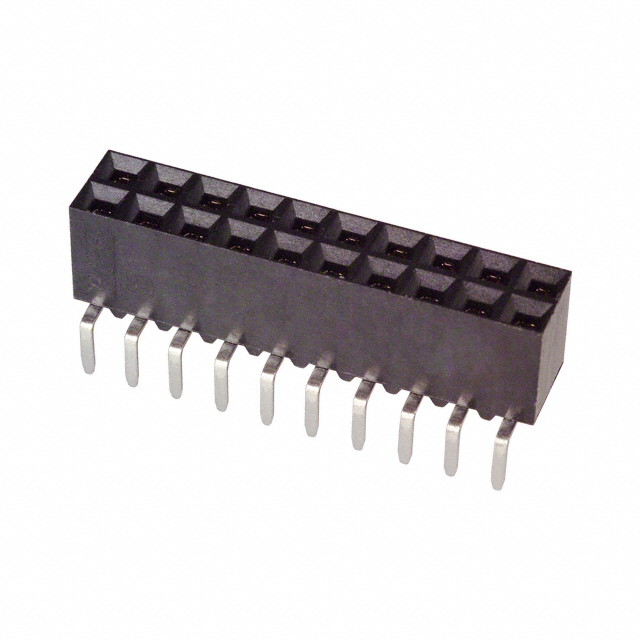

20 Position Receptacle, Bottom or Top Entry Connector 0.100" (2.54mm) Through Hole Gold
Specifications
- Mfr
- TE Connectivity AMP Connectors
- Style
- Board to Board
- Series
- AMPMODU Mod IV
- Features
- -
- Packaging
- Tube
- Part Status
- Active
- Termination
- Solder
- Applications
- -
- Contact Type
- Female Socket
- Contact Shape
- Square
- Mounting Type
- Through Hole
- Connector Type
- Receptacle, Bottom or Top Entry
- Fastening Type
- Push-Pull
Pitch - Mating0.100" (2.54mm) Contact MaterialPhosphor Bronze Insulation Height0.265" (6.73mm) Base Product Number534267 Insulation MaterialPolyester, Glass Filled Row Spacing - Mating0.100" (2.54mm) Contact Length - Post0.125" (3.18mm) Contact Finish - MatingGold Number of Positions LoadedAll Material Flammability Rating- Contact Finish Thickness - Post150.0µin (3.81µm) Contact Finish Thickness - Mating30.0µin (0.76µm) Pricing tiers
| Packaging | Qty | Unit price |
|---|
| Tube | 1 | ¥33.00000 |
| Tube | 22 | ¥26.50136 |
| Tube | 110 | ¥23.65445 |
| Tube | 506 | ¥21.23933 |
| Tube | 1,012 | ¥20.22618 |
