50228-0044N-001

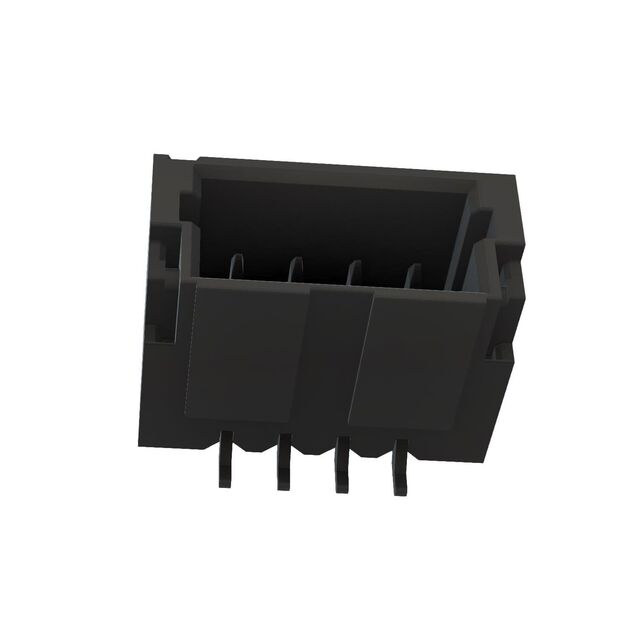

4P, 1.0 MM PITCH WTB WAFER CONN.
Manufacturer: Aces ConnectorsIC code: 4294-50228-0044N-001TR-ND - Tape & Reel (TR) || 4294-50228-0044N-001CT-ND - Cut Tape (CT) || 4294-50228-0044N-001DKR-ND - Digi-Reel® Request this MPN now. Sourcing more than one part? Upload your BOM and we can consolidate component sourcing into one quotation.
Description
Connector Header Surface Mount 4 position 0.039" (1.00mm)
Specifications
- Mfr
- Aces Connectors
- Style
- Board to Cable/Wire
- Series
- -
- Features
- Solder Retention
- Packaging
- Tape & Reel (TR) || Cut Tape (CT) || Digi-Reel®
- Shrouding
- Shrouded - 4 Wall
- Part Status
- Active
- Termination
- Solder
- Applications
- General Purpose
- Contact Type
- Male Pin
- Contact Shape
- Rectangular
- Mounting Type
- Surface Mount
- Connector Type
- Header
Pitch - Mating0.039" (1.00mm) Contact MaterialCopper Alloy Insulation Height0.169" (4.30mm) Insulation MaterialPlastic, Halogen Free Operating Temperature-40°C ~ 85°C Contact Finish - MatingTin Number of Positions LoadedAll Material Flammability RatingUL94 V-0 Contact Finish Thickness - Post- Contact Finish Thickness - Mating- Pricing tiers
| Packaging | Qty | Unit price |
|---|
| Cut Tape (CT) & Digi-Reel® | 1 | ¥0.83000 |
| Cut Tape (CT) & Digi-Reel® | 10 | ¥0.59500 |
| Cut Tape (CT) & Digi-Reel® | 100 | ¥0.50770 |
| Cut Tape (CT) & Digi-Reel® | 500 | ¥0.45316 |
| Tape & Reel (TR) | 1,000 | ¥0.43149 |
| Tape & Reel (TR) | 2,000 | ¥0.41090 |
| Tape & Reel (TR) | 3,000 | ¥0.39927 |
| Tape & Reel (TR) | 5,000 | ¥0.38512 |
| Tape & Reel (TR) | 7,000 | ¥0.37608 |
| Tape & Reel (TR) | 10,000 | ¥0.36673 |
| Tape & Reel (TR) | 25,000 | ¥0.34376 |
| Tape & Reel (TR) | 50,000 | ¥0.32735 |
| Tape & Reel (TR) | 100,000 | ¥0.31173 |
