50246-03401-001

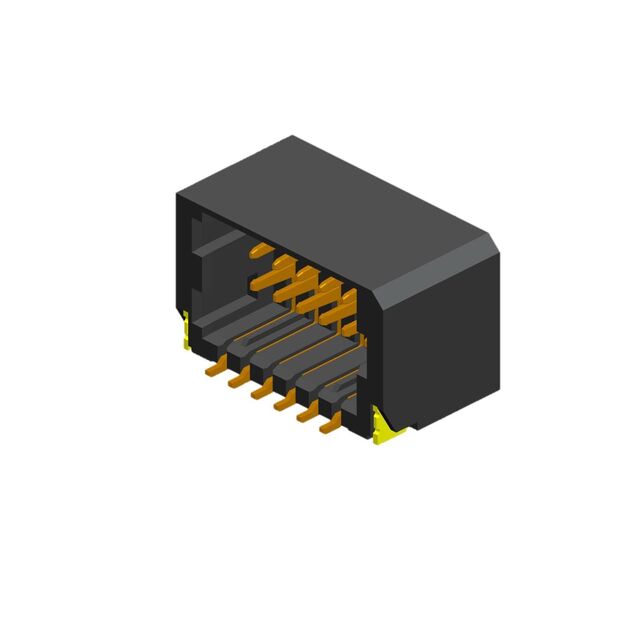

34P, 1.0MM WTB WAFER SMT R/A D/R
Manufacturer: Aces ConnectorsIC code: 4294-50246-03401-001TR-ND - Tape & Reel (TR) || 4294-50246-03401-001CT-ND - Cut Tape (CT) || 4294-50246-03401-001DKR-ND - Digi-Reel® Request this MPN now. Sourcing more than one part? Upload your BOM and we can consolidate component sourcing into one quotation.
Description
Connector Header Surface Mount, Right Angle 34 position 0.039" (1.00mm)
Specifications
- Mfr
- Aces Connectors
- Style
- Board to Cable/Wire
- Series
- 50246
- Features
- Solder Retention
- Packaging
- Tape & Reel (TR) || Cut Tape (CT) || Digi-Reel®
- Shrouding
- Shrouded - 4 Wall
- Part Status
- Active
- Termination
- Solder
- Applications
- General Purpose
- Contact Type
- Male Pin
- Contact Shape
- Rectangular
- Mounting Type
- Surface Mount, Right Angle
- Connector Type
Pitch - Mating0.039" (1.00mm) Contact MaterialCopper Alloy Insulation Height0.213" (5.40mm) Insulation MaterialThermoplastic Contact Finish - PostGold Current Rating (Amps)1A per Contact Operating Temperature-25°C ~ 85°C Contact Finish - MatingGold Number of Positions LoadedAll Material Flammability RatingUL94 V-0 Contact Finish Thickness - PostFlash Contact Finish Thickness - MatingFlash Pricing tiers
| Packaging | Qty | Unit price |
|---|
| Cut Tape (CT) & Digi-Reel® | 1 | ¥7.19000 |
| Cut Tape (CT) & Digi-Reel® | 10 | ¥6.10300 |
| Cut Tape (CT) & Digi-Reel® | 100 | ¥5.18320 |
| Tape & Reel (TR) | 900 | ¥4.43778 |
| Tape & Reel (TR) | 1,800 | ¥4.22589 |
| Tape & Reel (TR) | 2,700 | ¥4.10673 |
| Tape & Reel (TR) | 4,500 | ¥3.96142 |
| Tape & Reel (TR) | 6,300 | ¥3.86853 |
| Tape & Reel (TR) | 9,000 | ¥3.77246 |
| Tape & Reel (TR) | 22,500 | ¥3.53653 |
