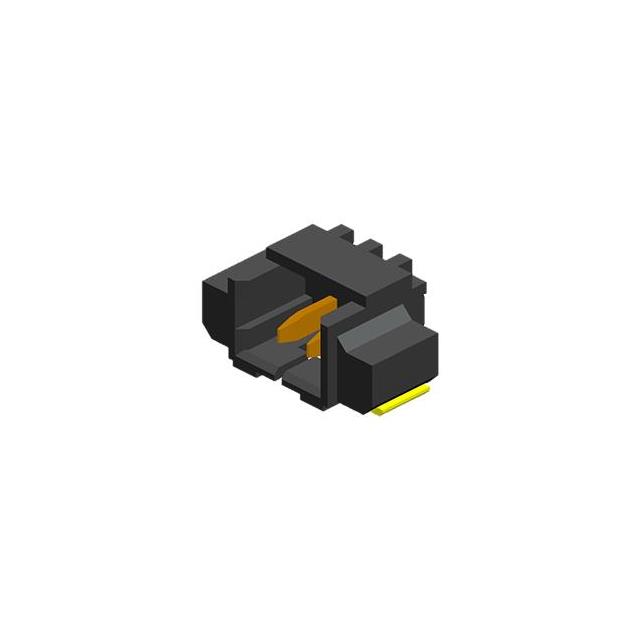

50271-00201-001
1.25MM PITCH 2 POSITION WIRE TO
Manufacturer: Aces ConnectorsIC code: 4294-50271-00201-001TR-ND - Tape & Reel (TR) || 4294-50271-00201-001CT-ND - Cut Tape (CT) || 4294-50271-00201-001DKR-ND - Digi-Reel® Request this MPN now. Sourcing more than one part? Upload your BOM and we can consolidate component sourcing into one quotation.
Description
Connector Header Surface Mount, Right Angle 2 position 0.049" (1.25mm)
Specifications
- Mfr
- Aces Connectors
- Style
- Board to Cable/Wire
- Series
- 50271
- Features
- Solder Retention
- Packaging
- Tape & Reel (TR) || Cut Tape (CT) || Digi-Reel®
- Shrouding
- Shrouded - 4 Wall
- Part Status
- Active
- Termination
- Solder
- Applications
- -
- Contact Type
- Male Pin
- Contact Shape
- Rectangular
- Mounting Type
- Surface Mount, Right Angle
- Connector Type
- Header
Fastening TypeDetent Lock Pitch - Mating0.049" (1.25mm) Contact MaterialCopper Alloy Insulation Height0.134" (3.40mm) Insulation MaterialPlastic, Halogen Free Contact Finish - PostGold Current Rating (Amps)Varies by Wire Gauge Contact Finish - MatingGold Number of Positions LoadedAll Material Flammability RatingUL94 V-0 Contact Finish Thickness - PostFlash Contact Finish Thickness - MatingFlash Pricing tiers
| Packaging | Qty | Unit price |
|---|
| Cut Tape (CT) & Digi-Reel® | 1 | ¥0.83000 |
| Cut Tape (CT) & Digi-Reel® | 10 | ¥0.73600 |
| Cut Tape (CT) & Digi-Reel® | 100 | ¥0.62520 |
| Cut Tape (CT) & Digi-Reel® | 500 | ¥0.55772 |
| Tape & Reel (TR) | 1,500 | ¥0.51610 |
| Tape & Reel (TR) | 3,000 | ¥0.49143 |
| Tape & Reel (TR) | 4,500 | ¥0.47756 |
| Tape & Reel (TR) | 7,500 | ¥0.46063 |
| Tape & Reel (TR) | 10,500 | ¥0.44982 |
| Tape & Reel (TR) | 15,000 | ¥0.43863 |
| Tape & Reel (TR) | 37,500 | ¥0.41117 |
| Tape & Reel (TR) | 75,000 | ¥0.39155 |
| Tape & Reel (TR) | 150,000 | ¥0.37287 |
