50308-0030N-002

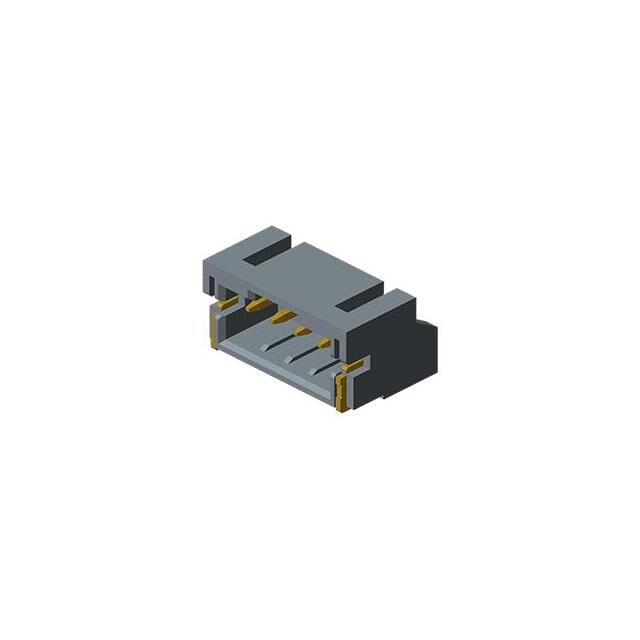

3P, 2.0MM PITCH WTB WAFER CONN.
Manufacturer: Aces ConnectorsIC code: 4294-50308-0030N-002TR-ND - Tape & Reel (TR) || 4294-50308-0030N-002CT-ND - Cut Tape (CT) || 4294-50308-0030N-002DKR-ND - Digi-Reel® Request this MPN now. Sourcing more than one part? Upload your BOM and we can consolidate component sourcing into one quotation.
Description
Connector Header Surface Mount, Right Angle 3 position 0.079" (2.00mm)
Specifications
- Mfr
- Aces Connectors
- Style
- Board to Cable/Wire
- Series
- 50308
- Features
- Solder Retention
- Packaging
- Tape & Reel (TR) || Cut Tape (CT) || Digi-Reel®
- Shrouding
- Shrouded - 4 Wall
- Part Status
- Active
- Termination
- Solder
- Applications
- -
- Contact Type
- Male Pin
- Contact Shape
- Square
- Mounting Type
- Surface Mount, Right Angle
- Connector Type
- Header
Fastening TypeDetent Lock Pitch - Mating0.079" (2.00mm) Contact MaterialCopper Alloy Insulation Height0.228" (5.80mm) Insulation MaterialPlastic, Halogen Free Operating Temperature-40°C ~ 85°C Contact Finish - MatingTin Number of Positions LoadedAll Material Flammability RatingUL94 V-0 Contact Finish Thickness - Post- Contact Finish Thickness - Mating- Pricing tiers
| Packaging | Qty | Unit price |
|---|
| Cut Tape (CT) & Digi-Reel® | 1 | ¥1.74000 |
| Cut Tape (CT) & Digi-Reel® | 10 | ¥1.45500 |
| Cut Tape (CT) & Digi-Reel® | 100 | ¥1.23630 |
| Tape & Reel (TR) | 700 | ¥1.07749 |
| Tape & Reel (TR) | 1,400 | ¥1.02604 |
| Tape & Reel (TR) | 2,100 | ¥0.99704 |
| Tape & Reel (TR) | 3,500 | ¥0.96172 |
| Tape & Reel (TR) | 4,900 | ¥0.93914 |
| Tape & Reel (TR) | 7,000 | ¥0.91580 |
| Tape & Reel (TR) | 17,500 | ¥0.85846 |
| Tape & Reel (TR) | 35,000 | ¥0.81750 |
| Tape & Reel (TR) | 70,000 | ¥0.77851 |
