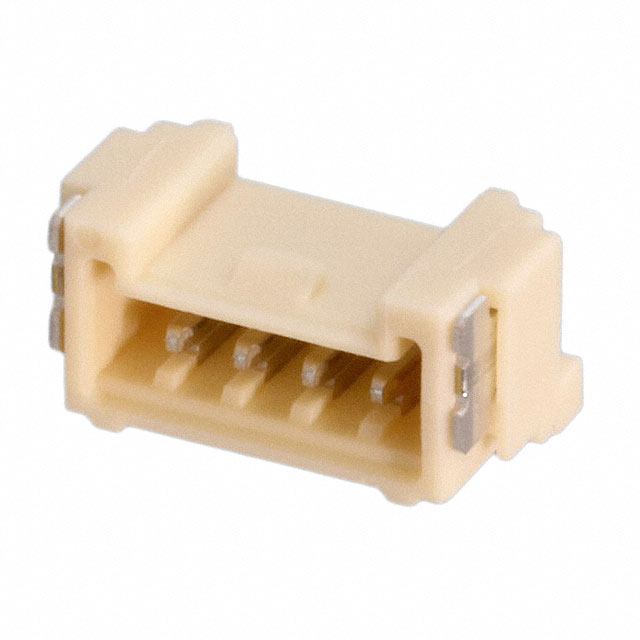

5041940470
CONN HEADER SMD 4POS 1.25MM
Manufacturer: MolexIC code: WM10580TR-ND - Tape & Reel (TR) || WM10580CT-ND - Cut Tape (CT) || WM10580DKR-ND - Digi-Reel® Request this MPN now. Sourcing more than one part? Upload your BOM and we can consolidate component sourcing into one quotation.
Description
Connector Header Surface Mount 4 position 0.049" (1.25mm)
Specifications
- Mfr
- Molex
- Style
- Board to Cable/Wire
- Series
- Micro-Lock 504194
- Features
- Solder Retention
- Packaging
- Tape & Reel (TR) || Cut Tape (CT) || Digi-Reel®
- Shrouding
- Shrouded - 4 Wall
- Part Status
- Active
- Termination
- Solder
- Applications
- -
- Contact Type
- Male Blade
- Contact Shape
- Rectangular
- Mounting Type
- Surface Mount
- Connector Type
- Header
Pitch - Mating0.049" (1.25mm) Insulation Height0.163" (4.15mm) Base Product Number504194 Insulation MaterialPolyamide (PA), Nylon, Glass Filled Mated Stacking Heights7.3mm Contact Finish - MatingTin Number of Positions LoadedAll Material Flammability RatingUL94 V-0 Contact Finish Thickness - Post39.4µin (1.00µm) Contact Finish Thickness - Mating39.4µin (1.00µm) Pricing tiers
| Packaging | Qty | Unit price |
|---|
| Tape & Reel (TR) | 1,200 | ¥5.84764 |
| Tape & Reel (TR) | 2,400 | ¥5.56860 |
| Tape & Reel (TR) | 3,600 | ¥5.41161 |
| Tape & Reel (TR) | 6,000 | ¥5.22016 |
| Tape & Reel (TR) | 8,400 | ¥5.09781 |
| Tape & Reel (TR) | 12,000 | ¥4.97124 |
| Cut Tape (CT) | 1 | ¥9.68000 |
| Cut Tape (CT) | 10 | ¥8.20400 |
| Cut Tape (CT) | 100 | ¥6.96910 |
| Cut Tape (CT) | 500 | ¥6.22036 |
| Digi-Reel® | 1 | ¥10.83000 |
| Digi-Reel® | 10 | ¥8.97300 |
| Digi-Reel® | 100 | ¥7.47610 |
