5041950470

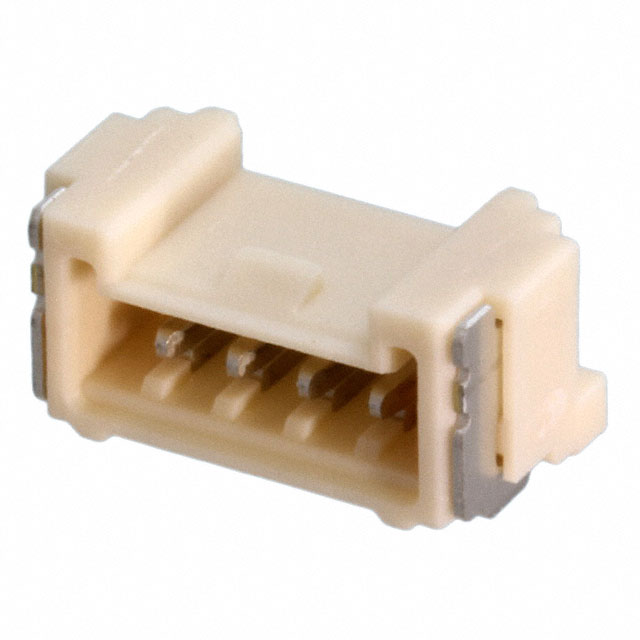

CONN HEADER SMD R/A 4POS 1.25MM
Manufacturer: MolexIC code: WM10585TR-ND - Tape & Reel (TR) || WM10585CT-ND - Cut Tape (CT) || WM10585DKR-ND - Digi-Reel® Request this MPN now. Sourcing more than one part? Upload your BOM and we can consolidate component sourcing into one quotation.
Description
Connector Header Surface Mount, Right Angle 4 position 0.049" (1.25mm)
Specifications
- Mfr
- Molex
- Style
- Board to Cable/Wire
- Series
- Micro-Lock 504195
- Features
- Solder Retention
- Packaging
- Tape & Reel (TR) || Cut Tape (CT) || Digi-Reel®
- Shrouding
- Shrouded - 4 Wall
- Part Status
- Active
- Termination
- Solder
- Applications
- -
- Contact Type
- Male Blade
- Contact Shape
- Rectangular
- Mounting Type
- Surface Mount, Right Angle
- Connector Type
- Header
Pitch - Mating0.049" (1.25mm) Insulation Height0.163" (4.15mm) Base Product Number504195 Insulation MaterialPolyamide (PA), Nylon, Glass Filled Contact Finish - MatingTin Number of Positions LoadedAll Material Flammability RatingUL94 V-0 Contact Finish Thickness - Post39.4µin (1.00µm) Contact Finish Thickness - Mating39.4µin (1.00µm) Pricing tiers
| Packaging | Qty | Unit price |
|---|
| Cut Tape (CT) & Digi-Reel® | 1 | ¥10.42000 |
| Cut Tape (CT) & Digi-Reel® | 10 | ¥8.84100 |
| Cut Tape (CT) & Digi-Reel® | 100 | ¥7.51080 |
| Cut Tape (CT) & Digi-Reel® | 500 | ¥6.70416 |
| Tape & Reel (TR) | 1,200 | ¥5.74096 |
| Tape & Reel (TR) | 2,400 | ¥5.46698 |
| Tape & Reel (TR) | 3,600 | ¥5.31287 |
| Tape & Reel (TR) | 6,000 | ¥5.12491 |
| Tape & Reel (TR) | 8,400 | ¥5.00479 |
| Tape & Reel (TR) | 12,000 | ¥4.88056 |
