5055780660

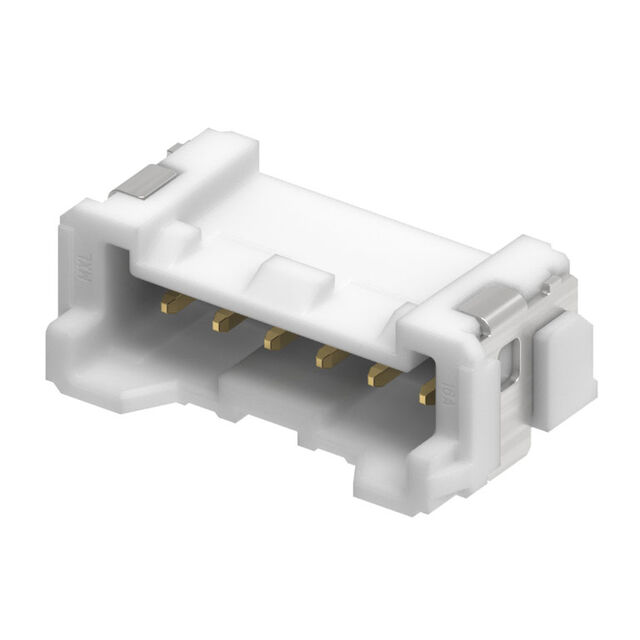

2.0W/B SMT RA PLUG 6CKT NAT G010
Manufacturer: MolexIC code: 900-5055780660TR-ND - Tape & Reel (TR) || 900-5055780660CT-ND - Cut Tape (CT) || 900-5055780660DKR-ND - Digi-Reel® Request this MPN now. Sourcing more than one part? Upload your BOM and we can consolidate component sourcing into one quotation.
Description
Connector Header Surface Mount, Right Angle 6 position 0.079" (2.00mm)
Specifications
- Mfr
- Molex
- Style
- Board to Cable/Wire
- Series
- Micro-Lock PLUS 505578
- Features
- Solder Retention
- Packaging
- Tape & Reel (TR) || Cut Tape (CT) || Digi-Reel®
- Shrouding
- Shrouded - 4 Wall
- Part Status
- Active
- Termination
- Solder
- Applications
- -
- Contact Type
- Male Pin
- Contact Shape
- Square
- Mounting Type
- Surface Mount, Right Angle
- Connector Type
- Header
Fastening TypeLocking Ramp Pitch - Mating0.079" (2.00mm) Insulation Height0.232" (5.90mm) Insulation MaterialPolyamide (PA), Nylon, Glass Filled Contact Finish - PostGold Current Rating (Amps)Varies by Wire Gauge Operating Temperature-40°C ~ 105°C Contact Finish - MatingGold Number of Positions LoadedAll Material Flammability RatingUL94 V-0 Contact Finish Thickness - Post3.94µin (0.100µm) Contact Finish Thickness - Mating3.94µin (0.100µm) Pricing tiers
| Packaging | Qty | Unit price |
|---|
| Cut Tape (CT) & Digi-Reel® | 1 | ¥13.07000 |
| Cut Tape (CT) & Digi-Reel® | 10 | ¥11.07400 |
| Cut Tape (CT) & Digi-Reel® | 100 | ¥9.41040 |
| Tape & Reel (TR) | 900 | ¥8.05791 |
| Tape & Reel (TR) | 1,800 | ¥7.67340 |
| Tape & Reel (TR) | 2,700 | ¥7.45708 |
| Tape & Reel (TR) | 4,500 | ¥7.19331 |
| Tape & Reel (TR) | 6,300 | ¥7.02471 |
| Tape & Reel (TR) | 9,000 | ¥6.85033 |
