Description

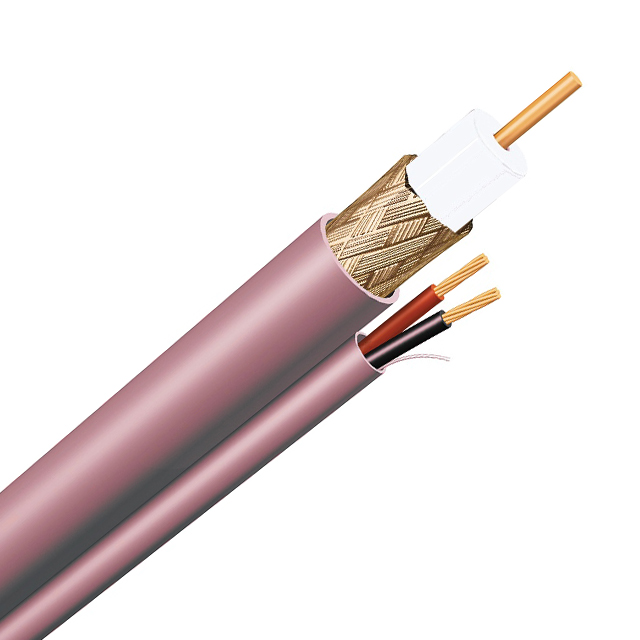

Coaxial, Twisted Pair - Combo Cable 20 AWG, 18 AWG (2) RG-59 500.0' (152.40m) 75 Ohms
Specifications
- Usage
- CCTV
- Length
- 500.0' (152.40m)
- Series
- -
- Features
- -
- Impedance
- 75 Ohms
- Packaging
- Spool
- Cable Type
- Coaxial, Twisted Pair - Combo
- Wire Gauge
- 20 AWG, 18 AWG (2)
- Cable Group
- RG-59
- Part Status
- Active
- Shield Type
- -
- Jacket Color
- Black
- Manufacturer
- Belden Inc.
Shield MaterialCopper, Bare Conductor StrandSolid, 7 Strands / 26 AWG (2) Conductor MaterialCopper, Bare Base Product Number549945 Dielectric Diameter0.059" (1.50mm), 0.145" (3.68mm) Dielectric MaterialFoam High Density Polyethylene (FHDPE), Polypropylene (PP) Operating Temperature-30°C ~ 80°C Jacket (Insulation) Diameter- Jacket (Insulation) MaterialPoly-Vinyl Chloride (PVC) VoP, Velocity of Propagation83.0 Pricing tiers
| Packaging | Qty | Unit price |
|---|
| Spool | 500 | ¥5.39966 |
| Spool | 1,000 | ¥5.13399 |
| Spool | 1,500 | ¥4.98368 |
| Spool | 2,500 | ¥4.79936 |
| Spool | 3,500 | ¥4.68101 |
| Spool | 5,000 | ¥4.55807 |
| Spool | 12,500 | ¥4.25380 |
