56910-00002-001

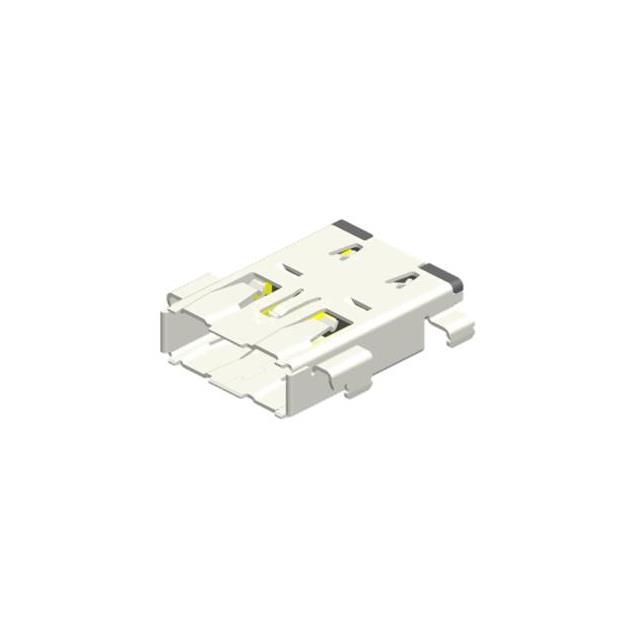

BOXING POWER JACK 400W
Manufacturer: Aces ConnectorsIC code: 4294-56910-00002-001TR-ND - Tape & Reel (TR) || 4294-56910-00002-001CT-ND - Cut Tape (CT) || 4294-56910-00002-001DKR-ND - Digi-Reel® Request this MPN now. Sourcing more than one part? Upload your BOM and we can consolidate component sourcing into one quotation.
Description
Connector Header Through Hole, Right Angle 3 position
Specifications
- Mfr
- Aces Connectors
- Style
- Board to Cable/Wire
- Series
- -
- Features
- -
- Packaging
- Tape & Reel (TR) || Cut Tape (CT) || Digi-Reel®
- Shrouding
- Shrouded - 4 Wall
- Part Status
- Active
- Termination
- Solder
- Applications
- -
- Contact Type
- Male Pin
- Contact Shape
- Rectangular
- Mounting Type
- Through Hole, Right Angle
- Connector Type
- Header
Contact MaterialCopper Alloy Insulation Height0.185" (4.70mm) Insulation MaterialPolyamide (PA9T), Nylon 9T, Glass Filled Current Rating (Amps)20A (DC) Contact Finish - MatingGold Number of Positions LoadedAll Material Flammability RatingUL94 V-0 Contact Finish Thickness - Post60.0µin (1.52µm) Contact Finish Thickness - MatingFlash Pricing tiers
| Packaging | Qty | Unit price |
|---|
| Cut Tape (CT) & Digi-Reel® | 1 | ¥14.11000 |
| Tape & Reel (TR) | 10 | ¥12.00300 |
| Tape & Reel (TR) | 20 | ¥11.42800 |
| Tape & Reel (TR) | 30 | ¥11.10767 |
| Tape & Reel (TR) | 50 | ¥10.71300 |
| Tape & Reel (TR) | 70 | ¥10.46043 |
| Tape & Reel (TR) | 100 | ¥10.20010 |
| Tape & Reel (TR) | 250 | ¥9.56128 |
| Tape & Reel (TR) | 500 | ¥9.10468 |
| Tape & Reel (TR) | 1,000 | ¥8.67009 |
