56966-0107N-002

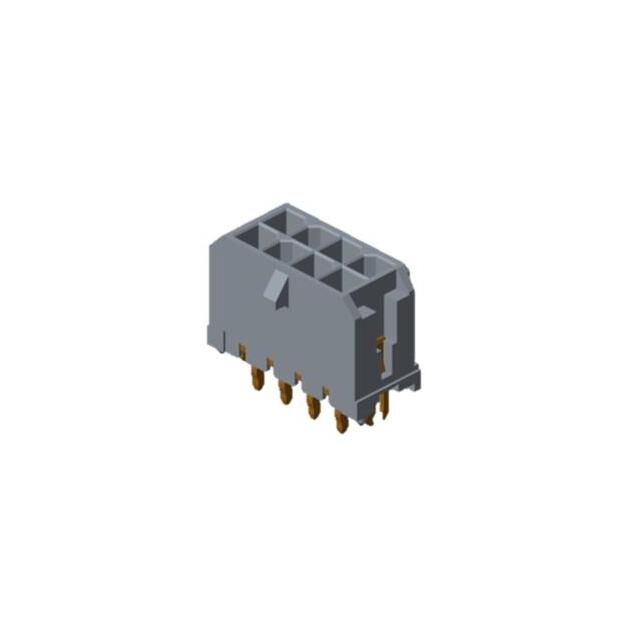

10P, 3.0MM PITCH MICRO LOCK HEAD
Manufacturer: Aces ConnectorsIC code: 4294-56966-0107N-002TR-ND - Tape & Reel (TR) || 4294-56966-0107N-002CT-ND - Cut Tape (CT) || 4294-56966-0107N-002DKR-ND - Digi-Reel® Request this MPN now. Sourcing more than one part? Upload your BOM and we can consolidate component sourcing into one quotation.
Description
Connector Header Through Hole 10 position 0.118" (3.00mm)
Specifications
- Mfr
- Aces Connectors
- Style
- Board to Cable/Wire
- Series
- 56966
- Features
- Board Guide, Board Lock, Pick and Place
- Packaging
- Tape & Reel (TR) || Cut Tape (CT) || Digi-Reel®
- Shrouding
- Shrouded - 4 Wall
- Part Status
- Active
- Termination
- Solder
- Applications
- General Purpose
- Contact Type
- Male Pin
- Contact Shape
- Square
- Mounting Type
- Through Hole
- Connector Type
- Header
Fastening TypeLocking Ramp Pitch - Mating0.118" (3.00mm) Contact MaterialCopper Alloy Insulation Height0.390" (9.91mm) Insulation MaterialThermoplastic Row Spacing - Mating0.118" (3.00mm) Contact Length - Post0.125" (3.18mm) Current Rating (Amps)12.5A per Contact Operating Temperature-40°C ~ 105°C Contact Finish - MatingTin Number of Positions LoadedAll Material Flammability RatingUL94 V-0 Contact Finish Thickness - Post- Contact Finish Thickness - Mating60.0µin (1.52µm) Pricing tiers
