57957-0040N-001

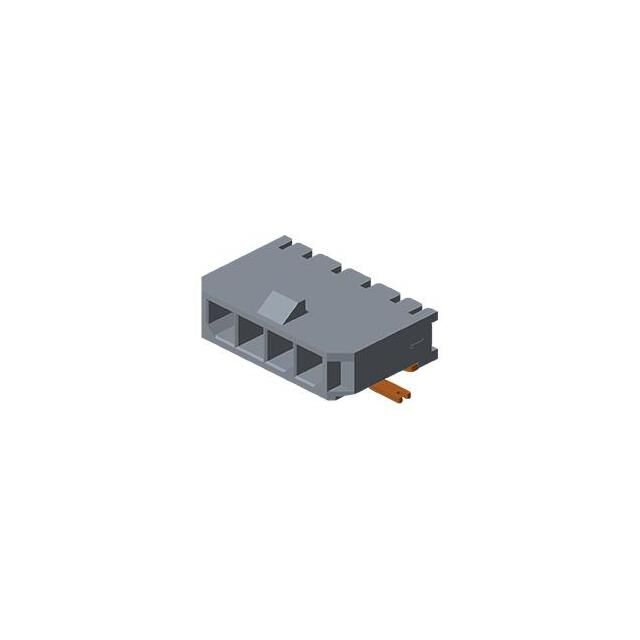

4 POS, 3.0 MM PITCH MICRO LUCK H
Manufacturer: Aces ConnectorsIC code: 4294-57957-0040N-001TR-ND - Tape & Reel (TR) || 4294-57957-0040N-001CT-ND - Cut Tape (CT) || 4294-57957-0040N-001DKR-ND - Digi-Reel® Request this MPN now. Sourcing more than one part? Upload your BOM and we can consolidate component sourcing into one quotation.
Description
Connector Header Surface Mount, Right Angle 4 position 0.118" (3.00mm)
Specifications
- Mfr
- Aces Connectors
- Style
- Board to Cable/Wire
- Series
- 57957
- Features
- Solder Retention
- Packaging
- Tape & Reel (TR) || Cut Tape (CT) || Digi-Reel®
- Shrouding
- Shrouded - 4 Wall
- Part Status
- Active
- Termination
- Solder
- Applications
- General Purpose
- Contact Type
- Male Pin
- Contact Shape
- Square
- Mounting Type
- Surface Mount, Right Angle
- Connector Type
Fastening TypeLocking Ramp Pitch - Mating0.118" (3.00mm) Contact MaterialCopper Alloy Insulation Height0.219" (5.56mm) Insulation MaterialThermoplastic Operating Temperature-40°C ~ 105°C Contact Finish - MatingTin Number of Positions LoadedAll Material Flammability RatingUL94 V-0 Contact Finish Thickness - Post- Contact Finish Thickness - Mating- Pricing tiers
| Packaging | Qty | Unit price |
|---|
| Cut Tape (CT) & Digi-Reel® | 1 | ¥7.61000 |
| Cut Tape (CT) & Digi-Reel® | 10 | ¥6.50000 |
| Cut Tape (CT) & Digi-Reel® | 25 | ¥6.08960 |
| Cut Tape (CT) & Digi-Reel® | 50 | ¥5.79680 |
| Cut Tape (CT) & Digi-Reel® | 100 | ¥5.51980 |
| Tape & Reel (TR) | 320 | ¥5.08434 |
| Tape & Reel (TR) | 640 | ¥4.84156 |
| Tape & Reel (TR) | 960 | ¥4.70498 |
| Tape & Reel (TR) | 1,600 | ¥4.53836 |
| Tape & Reel (TR) | 2,240 | ¥4.43191 |
| Tape & Reel (TR) | 3,200 | ¥4.32180 |
| Tape & Reel (TR) | 8,000 | ¥4.05140 |
| Tape & Reel (TR) | 16,000 | ¥3.85819 |
