59968-0160N-001

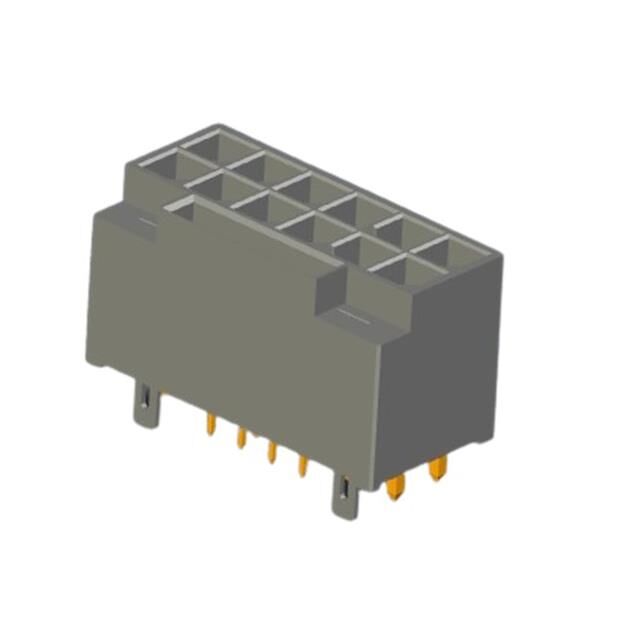

16P, 12VHPWR POWER CONN. T/H V/T
Manufacturer: Aces ConnectorsIC code: 4294-59968-0160N-001TR-ND - Tape & Reel (TR) || 4294-59968-0160N-001CT-ND - Cut Tape (CT) || 4294-59968-0160N-001DKR-ND - Digi-Reel® Request this MPN now. Sourcing more than one part? Upload your BOM and we can consolidate component sourcing into one quotation.
Description
Connector Header Through Hole 16 (4 + 12 Power) position 0.118" (3.00mm)
Specifications
- Mfr
- Aces Connectors
- Style
- Board to Cable/Wire
- Series
- 59968
- Features
- Board Guide
- Packaging
- Tape & Reel (TR) || Cut Tape (CT) || Digi-Reel®
- Shrouding
- Shrouded - 4 Wall
- Part Status
- Active
- Termination
- Solder
- Applications
- General Purpose
- Contact Type
- Male Pin
- Contact Shape
- Square
- Mounting Type
- Through Hole
- Connector Type
- Header
Pitch - Mating0.118" (3.00mm) Contact MaterialBrass, Copper Insulation Height0.390" (9.91mm) Insulation MaterialThermoplastic Number of Positions16 (4 + 12 Power) Row Spacing - Mating0.118" (3.00mm) Contact Length - Post0.094" (2.40mm) Current Rating (Amps)12.5A Operating Temperature-40°C ~ 105°C Contact Finish - MatingTin Number of Positions LoadedAll Material Flammability RatingUL94 V-0 Contact Finish Thickness - Post100.0µin (2.54µm) Contact Finish Thickness - Mating100.0µin (2.54µm) Pricing tiers
| Packaging | Qty | Unit price |
|---|
| Cut Tape (CT) & Digi-Reel® | 1 | ¥45.65000 |
| Cut Tape (CT) & Digi-Reel® | 10 | ¥38.81600 |
| Cut Tape (CT) & Digi-Reel® | 100 | ¥32.98880 |
| Tape & Reel (TR) | 225 | ¥31.15400 |
| Tape & Reel (TR) | 450 | ¥29.66756 |
| Tape & Reel (TR) | 675 | ¥28.83161 |
| Tape & Reel (TR) | 1,125 | ¥27.81165 |
| Tape & Reel (TR) | 1,575 | ¥27.15985 |
| Tape & Reel (TR) | 2,250 | ¥26.48574 |
