794354-1

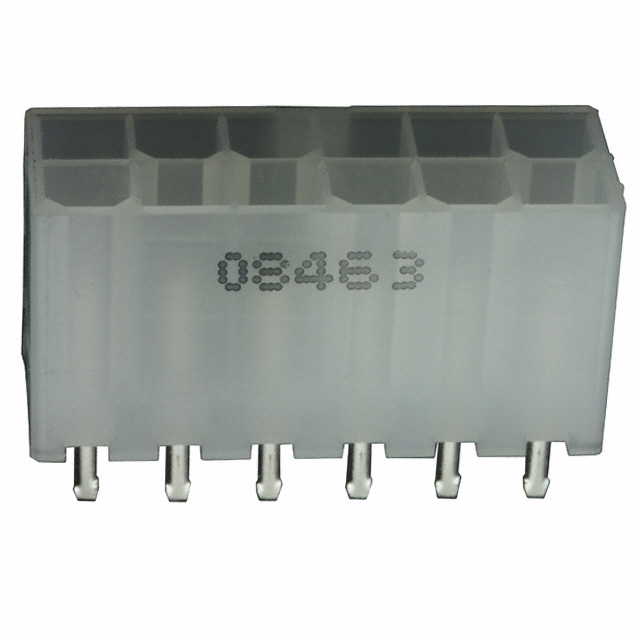

CONN HEADER VERT 12POS 4.2MM
Manufacturer: TE Connectivity AMP ConnectorsIC code: 794354-1-ND
Request this MPN now. Sourcing more than one part? Upload your BOM and we can consolidate component sourcing into one quotation.
Description
Connector Header Through Hole 12 position 0.165" (4.20mm)
Specifications
- Mfr
- TE Connectivity AMP Connectors
- Style
- Board to Board or Cable
- Series
- AMP-DUAC
- Features
- -
- Packaging
- Bulk
- Shrouding
- Shrouded - 4 Wall
- Part Status
- Obsolete
- Termination
- Solder
- Applications
- -
- Contact Type
- Male Pin
- Contact Shape
- Square
- Mounting Type
- Through Hole
- Connector Type
- Header
- Fastening Type
- Locking Ramp
- Number of Rows
- 2
- Pitch - Mating
- 0.165" (4.20mm)
- Voltage Rating
- 600VAC
- Contact Material
- Copper Alloy
- Insulation Color
- Natural
- Insulation Height
- 0.504" (12.80mm)
- Ingress Protection
- -
- Base Product Number
- 794354
- Insulation Material
- Polyamide (PA), Nylon
- Number of Positions
- 12
- Row Spacing - Mating
- 0.165" (4.20mm)
- Contact Finish - Post
- Tin-Lead
- Contact Length - Post
- 0.138" (3.50mm)
- Current Rating (Amps)
- -
- Operating Temperature
- -55°C ~ 105°C
- Mated Stacking Heights
- -
- Overall Contact Length
- -
- Contact Finish - Mating
- Tin-Lead
- Contact Length - Mating
- -
- Number of Positions Loaded
- All
- Material Flammability Rating
- UL94 V-2
- Contact Finish Thickness - Post
- -
- Contact Finish Thickness - Mating
- 118.1µin (3.00µm)
