Description

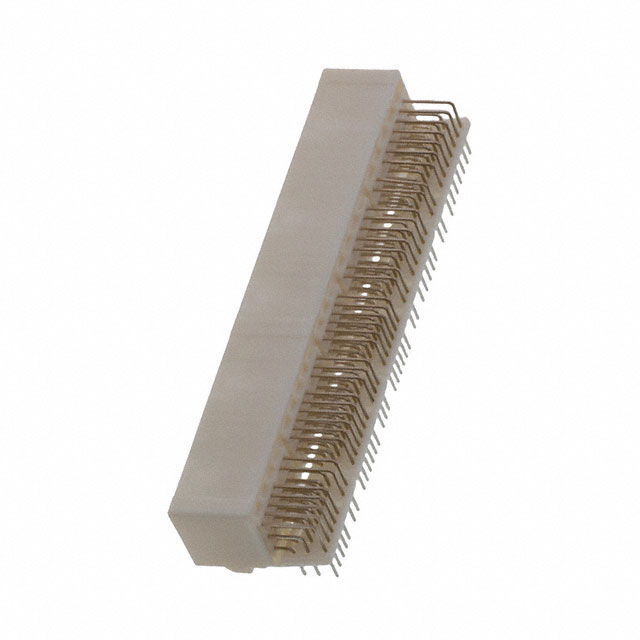

Connector Header Through Hole, Right Angle 122 position
Specifications
- Mfr
- TE Connectivity AMP Connectors
- Style
- Board to Cable/Wire
- Series
- Multi-Lock
- Features
- Mounting Flange
- Packaging
- Tube
- Shrouding
- Shrouded - 4 Wall
- Part Status
- Obsolete
- Termination
- Solder
- Applications
- Automotive, General Purpose
- Contact Type
- Tab
- Contact Shape
- Rectangular
- Mounting Type
- Through Hole, Right Angle
- Connector Type
- -
Fastening TypeLatch Holder Contact MaterialCopper Alloy Insulation Height0.886" (22.50mm) Base Product Number5353015 Insulation MaterialPolybutylene Terephthalate (PBT) Contact Length - Post0.157" (4.00mm) Current Rating (Amps)Varies by Wire Gauge Operating Temperature-30°C ~ 105°C Contact Finish - MatingGold Contact Length - Mating0.280" (7.11mm) Number of Positions LoadedAll Material Flammability Rating- Contact Finish Thickness - Post- Contact Finish Thickness - Mating- Pricing tiers
| Packaging | Qty | Unit price |
|---|
| Tube | 1 | ¥269.35000 |
| Tube | 12 | ¥226.01167 |
