Description

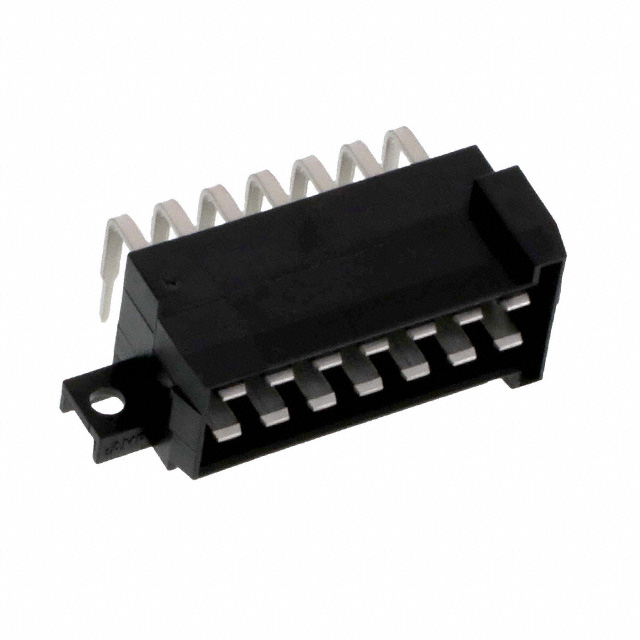

Connector Header Through Hole, Right Angle 14 position 0.197" (5.00mm)
Specifications
- Mfr
- TE Connectivity AMP Connectors
- Style
- Board to Cable/Wire
- Series
- Junior Power Timer
- Features
- Mounting Flange
- Packaging
- Bulk
- Shrouding
- Shrouded - 4 Wall
- Part Status
- Active
- Termination
- Solder
- Applications
- -
- Contact Type
- Tab
- Contact Shape
- Rectangular
- Mounting Type
- Through Hole, Right Angle
- Connector Type
- Plug
Pitch - Mating0.197" (5.00mm) Insulation Height0.748" (19.00mm) Base Product Number828801 Insulation MaterialPolyamide (PA66), Nylon 6/6 Row Spacing - Mating0.197" (5.00mm) Contact Length - Post0.138" (3.50mm) Operating Temperature-55°C ~ 105°C Contact Finish - MatingTin Contact Length - Mating0.366" (9.30mm) Number of Positions LoadedAll Material Flammability RatingUL94 V-2 Contact Finish Thickness - Post- Contact Finish Thickness - Mating- Pricing tiers
| Packaging | Qty | Unit price |
|---|
| Bulk | 1 | ¥56.98000 |
| Bulk | 10 | ¥48.38800 |
| Bulk | 294 | ¥38.11480 |
| Bulk | 588 | ¥36.29668 |
| Bulk | 1,176 | ¥34.56603 |
