Request this MPN now. Sourcing more than one part? Upload your BOM and we can consolidate component sourcing into one quotation.
Description

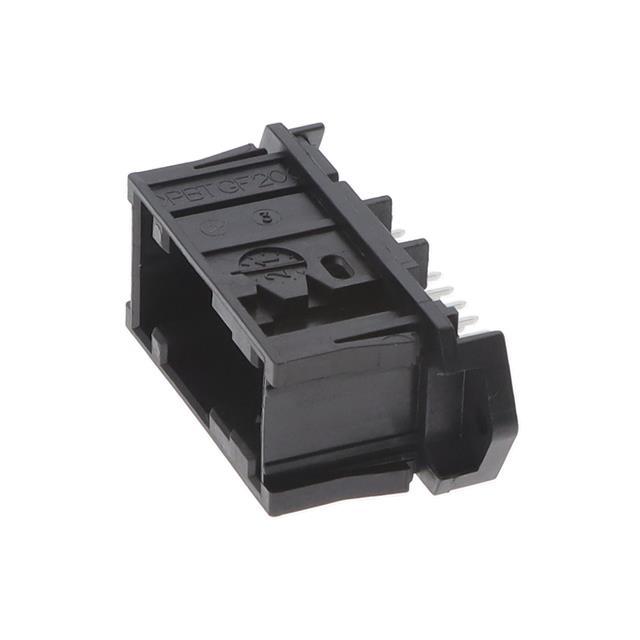

Connector Header Panel Mount, Through Hole, Right Angle 18 position 0.100" (2.54mm)
Specifications
- Mfr
- TE Connectivity AMP Connectors
- Style
- Board to Board
- Series
- Micro Quadlok
- Features
- Guide Pin
- Packaging
- Box
- Shrouding
- Shrouded - 4 Wall
- Part Status
- Active
- Termination
- Solder
- Applications
- -
- Contact Type
- Male Pin
- Contact Shape
- Circular
- Mounting Type
- Panel Mount, Through Hole, Right Angle
- Connector Type
- Header
Pitch - Mating0.100" (2.54mm) Contact MaterialCopper Alloy Insulation Height0.799" (20.30mm) Base Product Number953302 Insulation MaterialPolybutylene Terephthalate (PBT), Glass Filled Row Spacing - Mating0.100" (2.54mm) Contact Length - Post0.138" (3.50mm) Operating Temperature-40°C ~ 85°C Contact Finish - MatingTin Number of Positions LoadedAll Material Flammability RatingUL94 V-0 Contact Finish Thickness - Post- Contact Finish Thickness - Mating- Pricing tiers
| Packaging | Qty | Unit price |
|---|
| Box | 1 | ¥24.48000 |
| Box | 10 | ¥20.79100 |
| Box | 462 | ¥15.85816 |
| Box | 924 | ¥15.10150 |
| Box | 1,386 | ¥14.67583 |
| Box | 5,082 | ¥13.39156 |
